sku: NL-SW-LTE-SRC7611-4NG, and NL-SW-LTE-SRC7611-4NGV

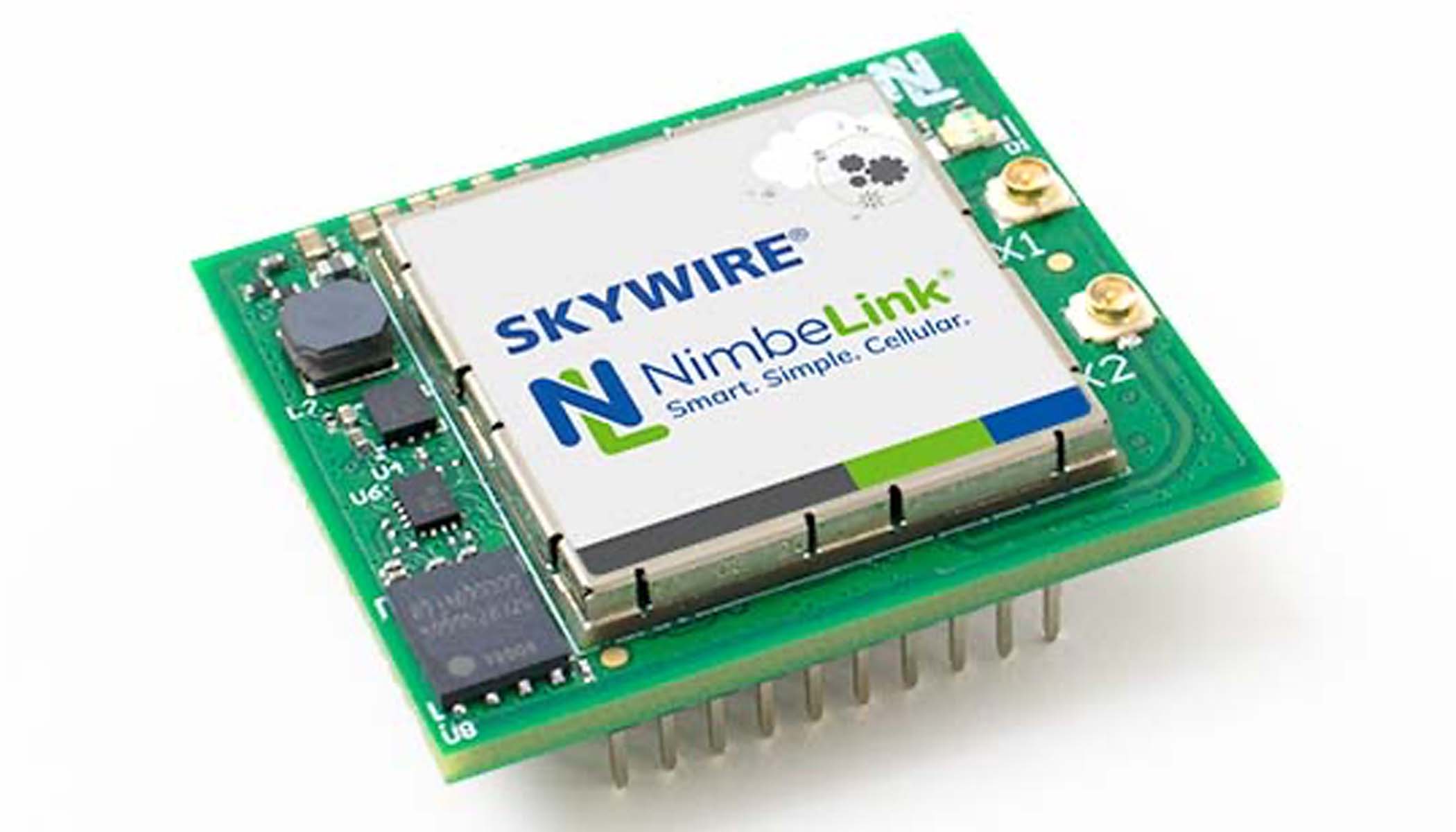

The NimbeLink SRC7611 Skywire® embedded modem is ideal for delivering fast, reliable 4G LTE CAT-4 cellular connectivity for devices in North America. The Sierra Wireless based modem supports dual SIMs, onboard network stacks, and is end-device certified on Verizon and AT&T.
Skywire embedded modems dramatically reduce the cost, risks, and timelines of IoT product development. With known-good RF engineering and fully validated software, Skywire allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers, and technologies. Further, our embedded modems are “End-Device Certified”, meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. Skywire modems significantly reduce time-to-market and are ideal for product development through large-scale production. All Skywire modems are patented and backed by industry-leading documentation and expert-level product support.
NL-SW-LTE-SRC7611 Features
- Skywire Form-Factor
- Sierra Wireless AirPrime Module (RC7611)
- All RF Engineering contained within the modem
- Carrier End-Device certified on Verizon and AT&T
- U.FL port for flexible antenna options
- Band 14 support – FirstNet ready
- Dual-SIM support with integrated solder down SIM and external 3FF SIM card slot
- Direct module access via Serial UART or USB
- Multi-Carrier Support on a Single Device
- Skywire family pin compatibility
- mPCIe and M.2 adapter boards available
- RoHS compliant
- Development kits available
Advantages
- CAT 4 LTE Speeds (Up to 150 MB down/50 MB up)
- Easily connect to AT&T, Bell, Rogers, Telus, Verizon
- Improved reception with RX diversity
- 10 Band LTE support
- Integrated GNSS support
- Data plans available
Tech Specs
- Throughput: 150 Mbps Download/50 Mbps Upload
- Average: N/A
- Peak: N/A
- Idle: N/A
- Sleep: N/A
- Supply Voltage: 3.0V to 5.5V
- Input Voltage: N/A
- I/O Voltage: 1.65V-5.5V
- Temperature Range: -40ºC to +85ºC
- Dimensions: 29mm x 33mm x 10.5mm
- Weight: 8 grams
- RoHS Compliant
- Bands
- LTE CAT 4, FDD B2[1900], B4[1700], B5[850], B12[700], B13[700], B14[700], B25[1900], B26 [850], B66[1700], B71[600]
- Certifications: RoHS compliant, FCC, IC, PTCRB, AT&T, and Verizon
