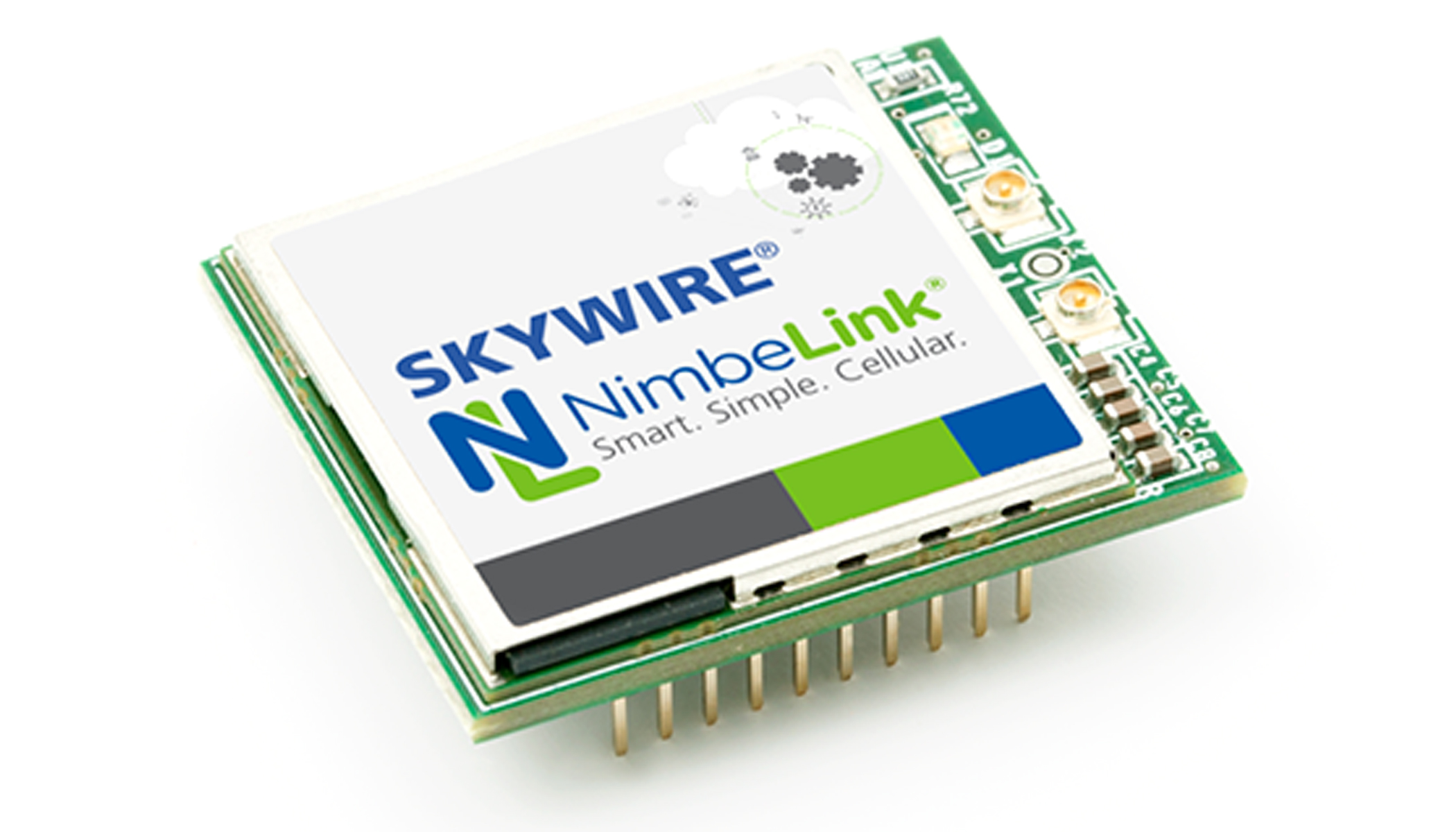

NimbeLink, a global leader in embedded cellular modem technology and asset tracking solutions, has introduced the Skywire® NL-SW-LTE-TC4EU modem. The Skywire 4G LTE CAT 4 EU modem is the fastest and most cost-effective way to bring cellular connectivity to your IoT products in Europe. Approved for use on the Orange LTE CAT 4 network with fallback to 2G/3G, NimbeLink’s CAT 4 EU modem delivers exceptional download and upload speeds.
All NimbeLink Skywire modems are small, pin-compatible, and end-device certified, which enables easy integration with no further carrier testing requirements. This time-to-market advantage allows developers to quickly design-in connectivity to cellular networks around the world. All Skywire embedded modems are patented and are backed by industry-leading documentation and expert-level product support.
NL-SW-LTE-TC4EU Features
- Small form-factor
- U.FL port for antenna flexibility
- Skywire standard interface
- 4G LTE CAT 4 with 2G/3G fallback
- Removable SIM card slot
- Antenna independent certification increases selection flexibility
- Connectivity via Serial UART or USB
- Supports a wide range of I/O voltages for design flexibility
- Development kits available
Advantages
- Longest Network Life
- CAT 4 LTE Speeds (150 Mbps download/50 Mbps upload)
- Improved reception with RX diversity
- Penta-Band LTE support
- Bundled data plans are available
Tech Specs
- Throughput: 150 Mbps Download/ 50 Mbps Upload
- Average: 135 mA
- Peak: 225 mA
- Idle: 40 mA
- Sleep: N/A
- Input Voltage: 3.4V-4.3V
- I/O Voltage: 1.8V-5.5V
- Temperature Range: -40ºC to 85ºC
- Dimensions: 29mm x 33mm x 10.5mm
- Weight: 8 grams
- RoHS Compliant
- Deployable Region: Europe
- Carriers: Orange, Vodafone
- Bands:
- LTE CAT 4 (FDD B1[2100], B3[1800], B7[2600], B8[900], B20[800])
- HSPA+ (B1 [2100], B8 [900])
- GSM, EDGE (GSM900, DCS1800)
- Certifications: CE Mark and RoHS Certificate of Compliance
