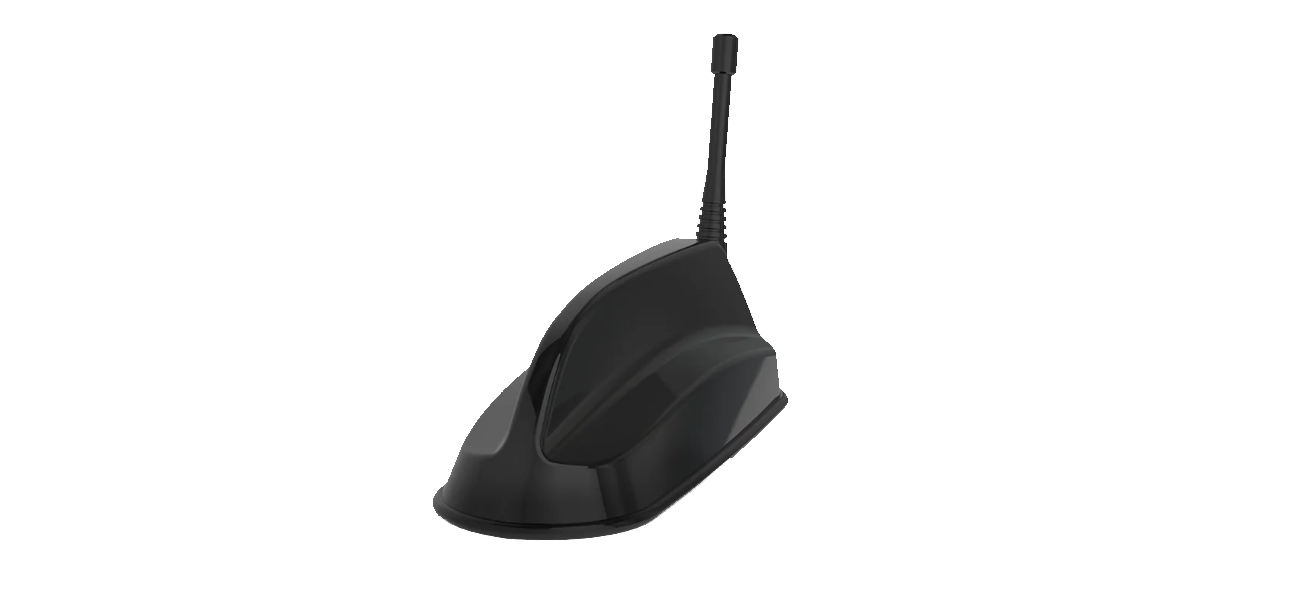

The GPSD ‘Sharkee’ range has become a byword for industry leading technology in a discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.
The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and option of 2×2, 3×3 or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas. A blanking cap is supplied for when this is not required.
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle’s resale value
Features:
- Covers 2×2 MiMo 4G/5G LTE
- OEM automotive style SharkFin housing
- Up to 4×4 MiMo WiFi and GPS/GNSS inside the distinctive sharkfin housing
- Single hole mounting – reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- Allows for a range of mobile radio whips
- Sleek semi-covert styling
- UN ECE R 118 Compliant Cable Feeds and IP69K Certified
