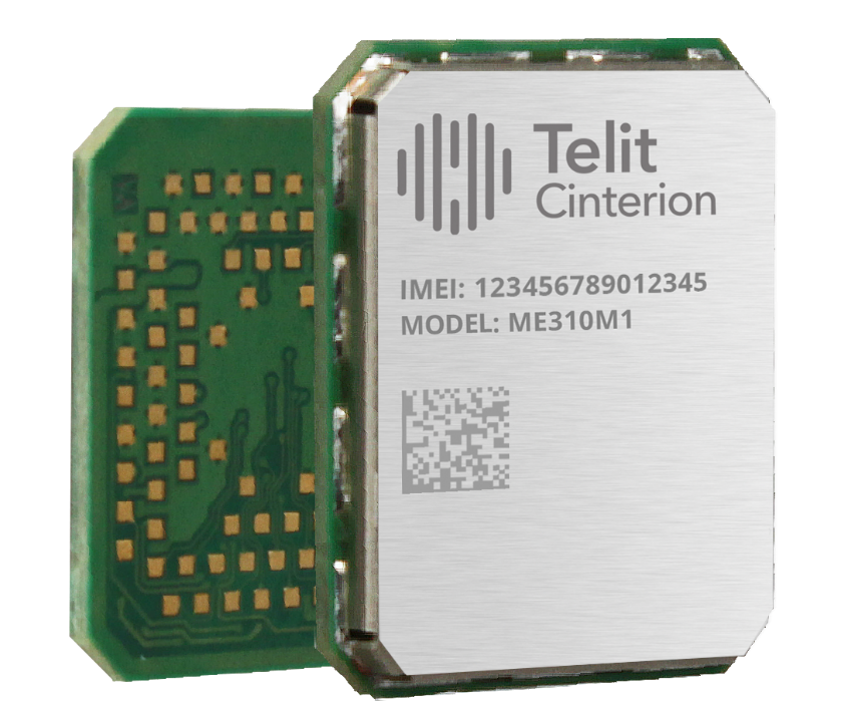

The ME310M1 is a next-generation member of our xE310 product family. This Category (Cat) M1 and NB2 module enables secure, massive, power efficient IoT device deployments and caters to low-data throughput IoT applications.
The ME310M1 offers ultralow power consumption and enhanced coverage quality.

• Compact form factor​, optimized for high yield and low-cost manufacturing
• Global SKU with future support for non-terrestrial networks (NTN)​
• Ultralow, best-in-class power consumption profile​
• Embedded processing (IoT AppZone) and flexible SIM solutions​, including embedded SIM (eSIM) and integrated SIM (iSIM) options
• Edge to cloud easy onboarding​
• Embedded GNSS and Wi-Fi scan for outdoor and indoor positioning

Product Features

• LTE UE Cat M1 (1.4 MHz), NB2 (200 kHz)
• 3GPP Rel 14 compliant
• Half-duplex FDD
• Single Rx, single antenna
• PSM, eDRX, extended coverage
• Control via AT commands according to 3GPP TS 27.005, 27.007 and customized Telit Cinterion AT commands
• SIM application tool kit
• SMS over NAS
• IPv4/IPv6 stack with TCP and UDP protocol
• TLS 1.3/DTLS
• OMA Lightweight M2M (LwM2M)
• Embedded intermitted GPS
• Concurrent GNSS on dedicated variant
• Wi-Fi positioning
• Firmware over-the-air update (FOTA) using delta upgrade techniques
• eSIM option
• iSIM (roadmap)
• NExT embedded connectivity
• NExT eSIM provisioning
• Embedded processing (AppZone)

Certifications

ME310M1-W1
FCC/IC, RED, GCF, PTCRB, NCC, RCM*, JATE/TELEC, AT&T, FirstNet, Verizon, T-Mobile U.S.*, KDDI, SOFTBANK*, NTT DOCOMO*, Telstra*

ME310GM1-W3
FCC/IC, RED, GCF, PTCRB, JATE/TELEC*, AT&T, FirstNet, Verizon, T-Mobile U.S.*, KDDI*, SOFTBANK*, NTT DOCOMO*, Telstra*

ME310GM1-W3S
FCC/IC*, RED*, GCF*, PTCRB*, JATE/TELEC*, AT&T*, FirstNet*, Verizon*, T-Mobile U.S.*, KDDI*, SOFTBANK*, NTT DOCOMO*, Telstra*

*Planned

Hardware & Electrical Specifications

• Dimensions: 15 x 18 mm
• 94-pad LGA footprint
• Normal Operating temperature range:
  – 40° C to +85° C
• Extended Operating temperature range:
  – 40° C to +90° C

Supply voltage:

• Nominal: 3.8 V dc
• Operating Voltage Range 2.5 V – 4.5 V
• Extended Voltage Range 2.2 V – 4.5 V

Power consumption:

•  PSM: 1.33 µA
• eDRX 81.92s: 7 µA
