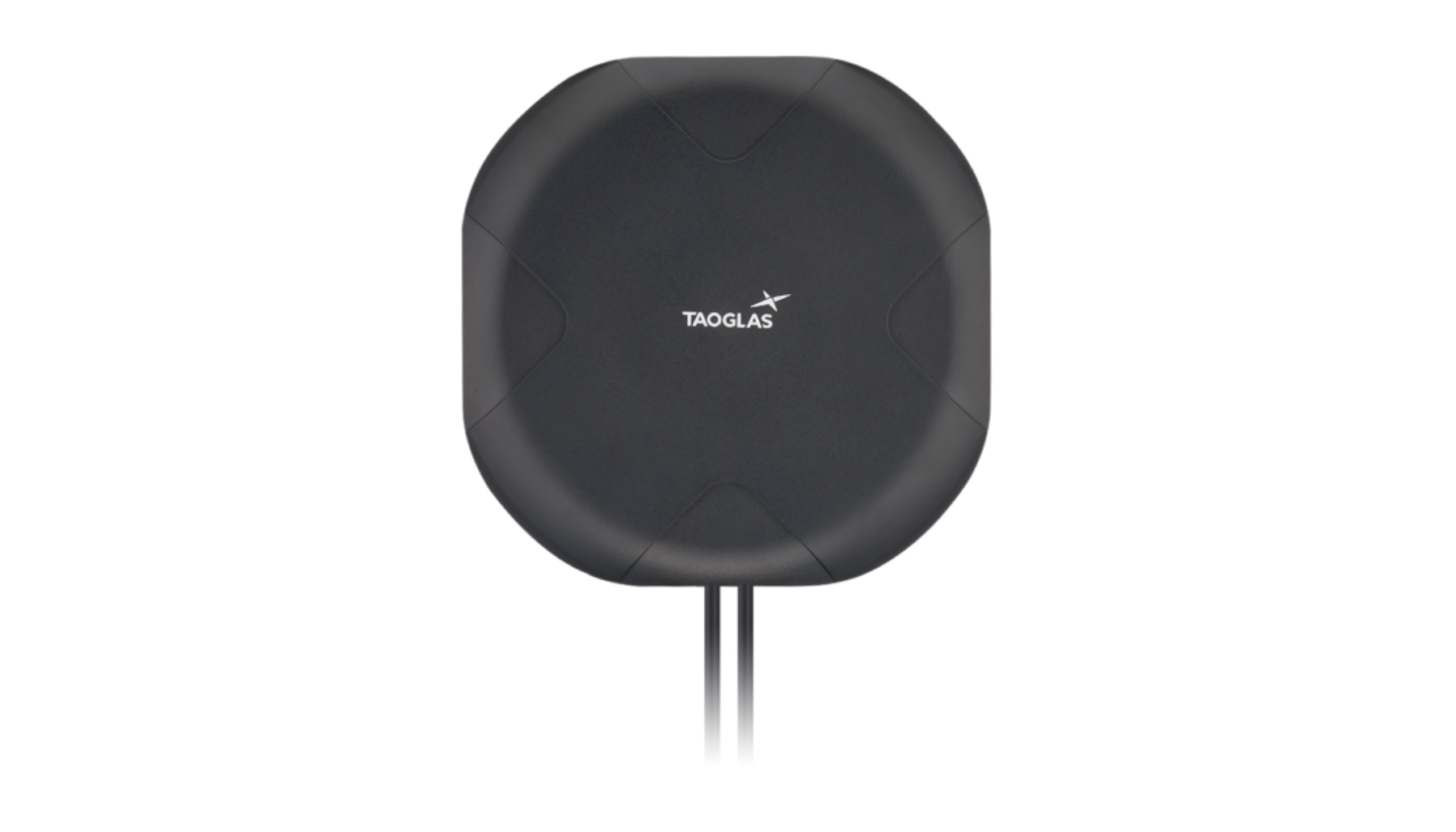

The TGX.45.A is a 2* 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 400 to 6000MHz. It uses two dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receiving signal levels, leading to better coverage and performance, especially in urban environments. It is designed for multiple mounting options to allow for a variety of use cases and is supplied with 3m of low-loss cable with SMA(M) connectors as standard.
The TGX.45 design is an evolution of our hugely successful TG.45 antenna design and it is unrivalled in its ability to cover all 5G/4G Sub 6GHz bands. The antenna is tuned for great performance at the recently established 5GNR bands between 3300 – 4200MHz and covers Band 31 (450MHz) and Band 71 (617MHz) at the lower end of the 5G/4G frequency spectrum. High Efficiency and good Gain are achievable at each band on both MIMO antennas.
FEATURES
- 5G/4G Cellular Wideband Coverage from 400-6000MHz
- Cross Polarized Dipole Antenna
- IP65 Rated Enclosure
- Omnidirectional Coverage
- High-Throughput
- Multi-function bracket for Wall, Pole or Glass Mounting
- Dimensions: 165 * 165 * 98.5 mm
- RoHS and Reach Compliant
