Smart SOCA
Self-optimizing cellular antenna solution for SISO systems
Built for Intelligent Connectivity
Cellular Path is an advanced antenna technology manufacturer focused on automation, precision alignment, and real-time signal optimization. Their Smart SOCA platform continuously evaluates and adjusts directional antennas to maintain peak cellular performance.
Designed for modern RF environments, Cellular Path solutions reduce manual alignment, minimize site visits, and improve overall connectivity consistency.
How it Works
- The Motor Rotates the Antenna 360 degrees and determines the strongest signal direction for your carrier selection.
- Outside, the coaxial cable and power cable connect to the SOCA controller.
- Use a Jumper cable to connect from SOCA to your signal booster or router, and then connect to your inside antenna.
- Using the Cellular Path App. Connect to your wifi network and begin calibration.
No Modem SOCA
Self-optimizing cellular antenna rotator solutions for fixed wireless access
Step-By-Step
Download App
Download the Free App for either iPhone or Android phones. You’ll need to download the app before you begin the installation process.
Install External Hardware
Begin by installing the Cellular Path Rotator. You’ll need a mounting pole or roofsled mount to attach the rotator (ensure 360º rotational clearance), coaxial cable plus your directional antenna (e.g., Yagi, LPDA or grid parabolic), and the power cable to connect the rotator to our internal SOCA Controller. Next, run both cables into your building.

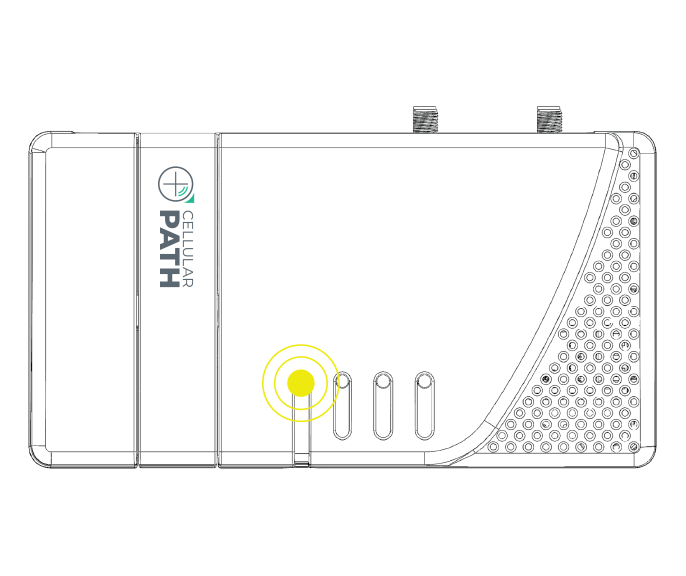

Install Internal Hardware: SMART SOCA Controller
We suggest placing the controller near your Signal Booster/DAS. Connect both the external coaxial cable and the power cable to the control board, then run an additional jumper cable to your signal booster/DAS hardware. You’ll need a wall socket for the 12V Adapter.
Connect To The Local WI-FI Network Or Use An Optional SIM
You can connect to the servers through the local wifi or via a SIM. If using wifi, connect to your wifi networks by entering your wifi name and password. Once you have completed this step, you’ll be able to monitor your system remotely, receive updates and recalibrate with ease. No Wifi Access? No problem. Use the SIM option instead.
Reposition Your Antenna
Now for the fun part! Open your app, name your device, select your carrier, choose the calibration frequency, set your alert preferences, and press “calibrate.” The outside antenna will perform a 360-degree sweep, stopping at 12 points to find the strongest signal for your carrier. This process takes about 4 minutes, after which the strongest signal setting is recorded in your app. You’ll also be able to make manual adjustments to a certain position without doing a complete rescan.
