Option CloudGate CloudGate NXS 5G RedCap

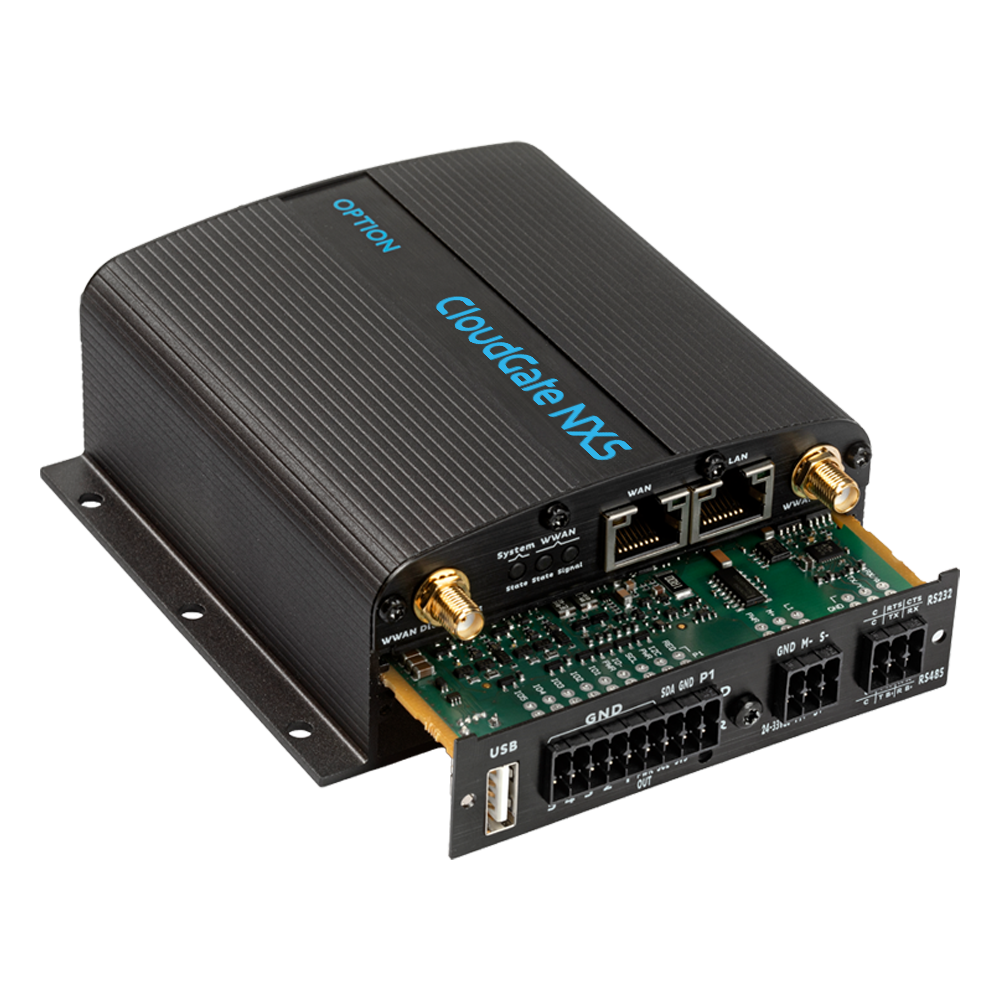

CloudGate NXS 5G RedCap
Industrial-grade, highly customizable secure cellular gateway
The CloudGate NXS gateway provides unique flexibility that allows customers and system integrators to tailor the product to their solution or even site-specific requirements. It incorporates several hardware expansion slots that allow the CloudGate NXS to be enhanced with additional radio and/or wired interfaces. The expansion cards are simple and quick to install, allowing the field upgrade of the device when new functionality is required.
Product Highlights
Cellular Connectivity: 5G RedCap, 4G LTE Gateway with worldwide coverage
Multi-Protocol: For numerous technologies & automation protocols
Customization Possibilities: Internal slots for expanding wireless protocols and front card custom development
There is an emerging trend of connecting, monitoring and controlling machines and other ‘things’ in our environment but using wires to do so is often not desirable or even possible. The optional LoRaWAN expansion card allows the CloudGate gateway to connect to all LoRaWAN wireless sensors.
• 5G RedCap gateway with worldwide coverage
• Active/passive GNSS
• Easily programmable with LuvitRED
• Expandable with existing CloudGate front expansion cards for ex.
Modbus, GPIO, I2C, Mbus, USB, 4-port ethernet, etc.
• Support for open market mPCIe and M.2 modules
• Optional battery card
CloudGate NXS as secure gateway
The CloudGate NXS features an Infineon SLM 9670 TPM2.0 module for:
- Safe key storage (eg to make TLS connection)
- Unique and reliable device authentication
towards Cloud - Secure boot (checking if firmware is authentic)
- Data encryption
- Regulatory and certification compliance (NIST)
And an ARM i.MX9 application processor with integrated security capabilities:
- EdgeLock® secure enclave
- Trusted Resource Domain Controller (TRDC)
- On-chip RAM (OCRAM) secure region protection
using OCRAM controller - Battery-Backed Security Module (BBSM) for robust
key storage and system integrity. - ARM(R) Trustzone(R) architecture, including both
Trustzone-A and Trustzone-M
Why choose CloudGate NXS
- Trustworthy: 2 Years warranty
- Rebranding: All devices available for OEM (highly customizable)
- Experience: 40 Years of wireless connectivity experience with many industry firsts.
- Proven: >100.000 4G Gateways deployed in the field, many of them +10years, and counting
- Future-proof: Building on NXP’s latest architecture with support until min. April 2038
- Highly Configurable Software: The only gateway on the market with the free award-winning graphical programming tool LuvitRED, exceeding Node-RED (or similar platforms) in every way
- Highly Configurable Hardware: Wide range of expansion cards available, adding multiple interfaces and protocols whilst maintaining the same gateway. This offers customers with different setups massive flexibility
- (Optional) Expandable AI/ML ready: CloudGate NXS is the first IoT gateway on the market with an optional AI coprocessor
