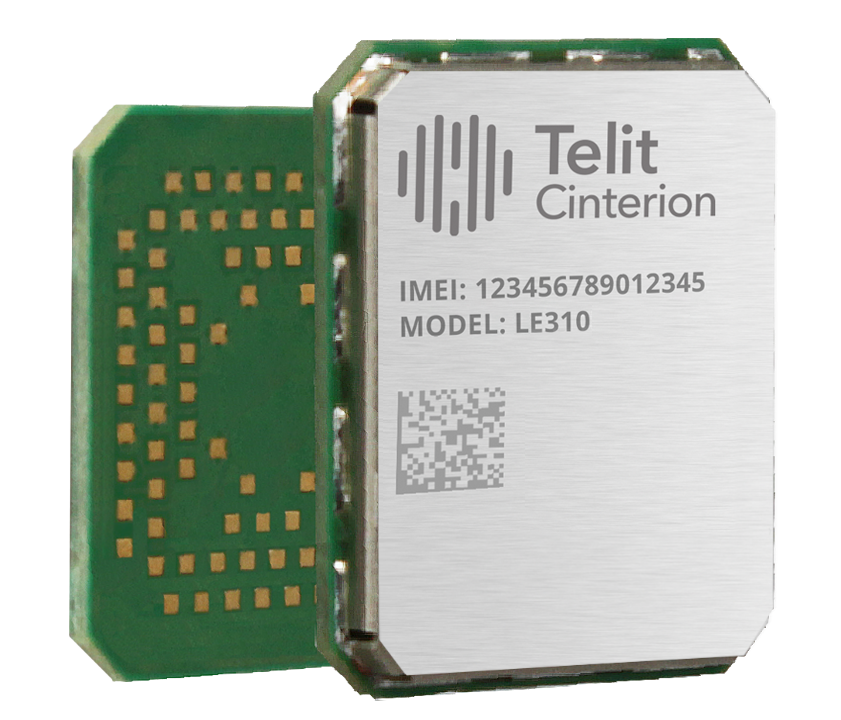

Telit LE310Q1
LTE Cat 1 bis 10/5 Mbps
LGAQualcomm QCX216LTE Cat-1 bis
The LE310Q1 is a small, industrial-grade, cost-optimized 3GPP Release (Rel) 14 LTE Cat 1 bis module. Among others, it’s suitable for applications like:
- Compact asset trackers
- Mobile personal emergency response systems (mPERS)
- Portable medical devices
This module offers:
- A small form factor that’s ideal for size-constrained IoT devices
- Pin-to-pin compatibility with other Telit Cinterion cellular LPWA modules for flexible design options
- LTE Cat 1 bis for worldwide connectivity, mobility and roaming
Product Features
- LTE FDD Cat 1 bis 3GPP Rel 14 compliant
- Single LTE antenna
- Telit Cinterion xE310 form factor family
- Built-in IPv4/IPv6, UDP, TCP, PPP, HTTP, HTTPS NTP, FTP stack
- Control via AT commands according to 3GPP
- TS 27.005, 27.007 and Telit Cinterion custom AT commands
- Wi-Fi scan
- Compliant with GSMA SGP.22 Remote SIM
Provisioning (RSP) standard - Validated against Telit Cinterion NExT SGP.22
eSIMs
Certifications
- FCC/ISED*, PTCRB*, RED*, GCF*, RCM*
- AT&T*, Verizon*, T-Mobile*
*planned
Hardware & Electrical Specifications
- Dimensions 15 x 18 x 2.6 mm
- 94-pin LGA interface
- Six I/O ports (@ 1.8 V), including multifunctional I/Os
- USB 2.0 HS
- UART
- SPI
- I2C
- 1.8 V/3V SIM interface
- Normal operating temperature range:
-30° C to +65° C - Extended operating temperature range:
-40°C to +85°C - Supply voltage range:
– Nominal: 3.8 V dc
– Range: 3.4-4.2 V dc
