Purpose-Built for High-Capacity Multi-Orbit Infrastructure

Overview

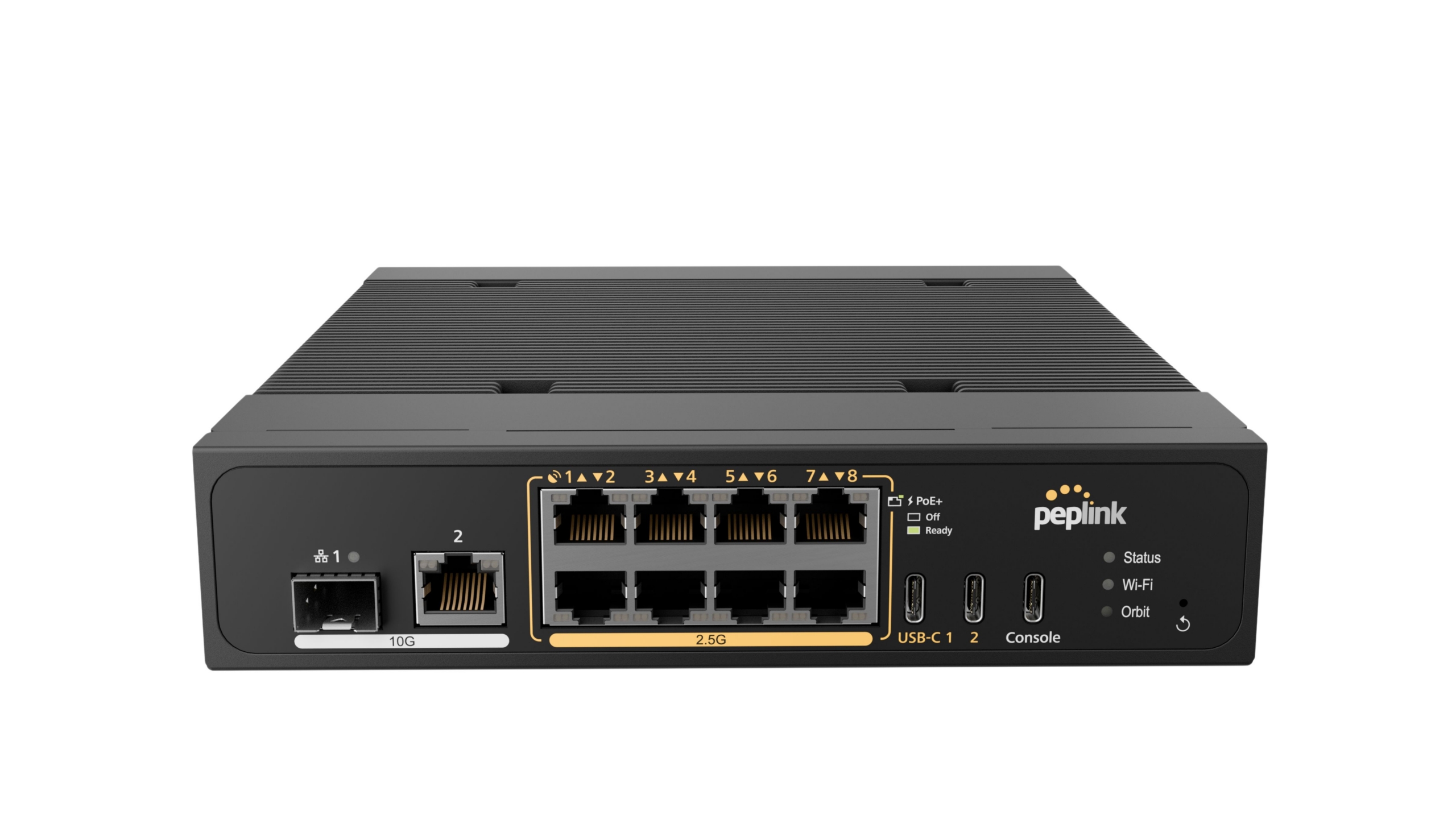

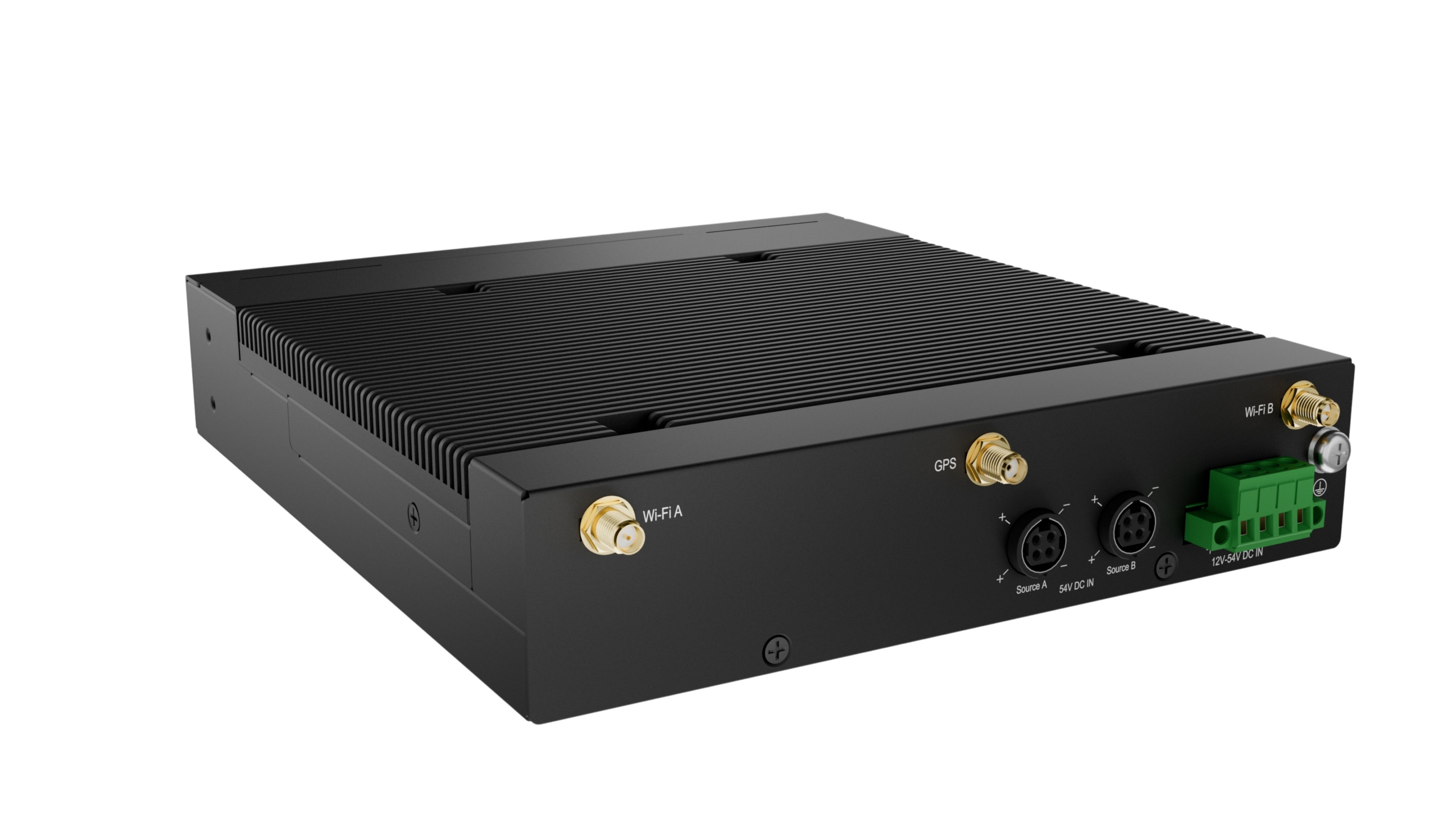

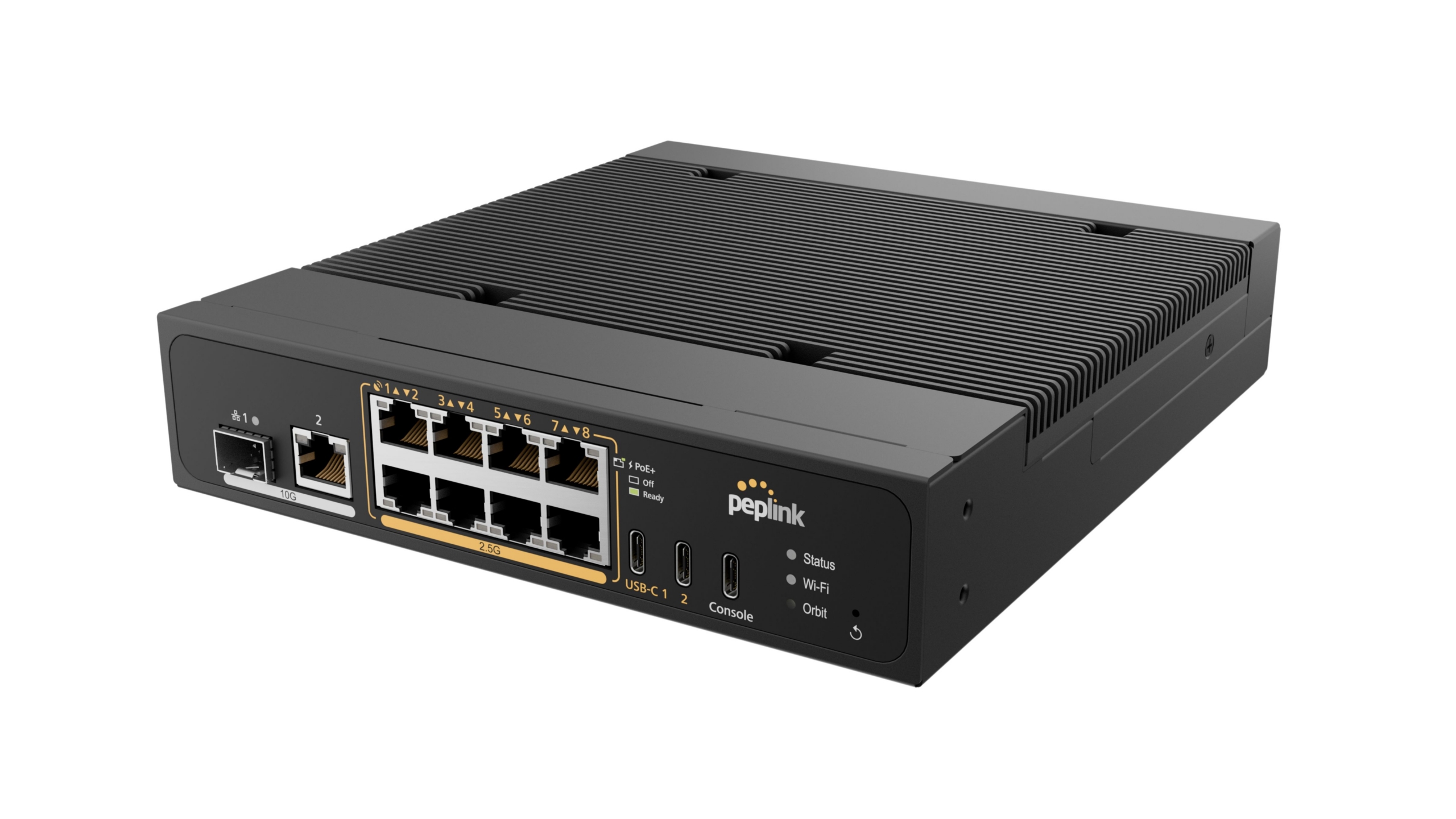

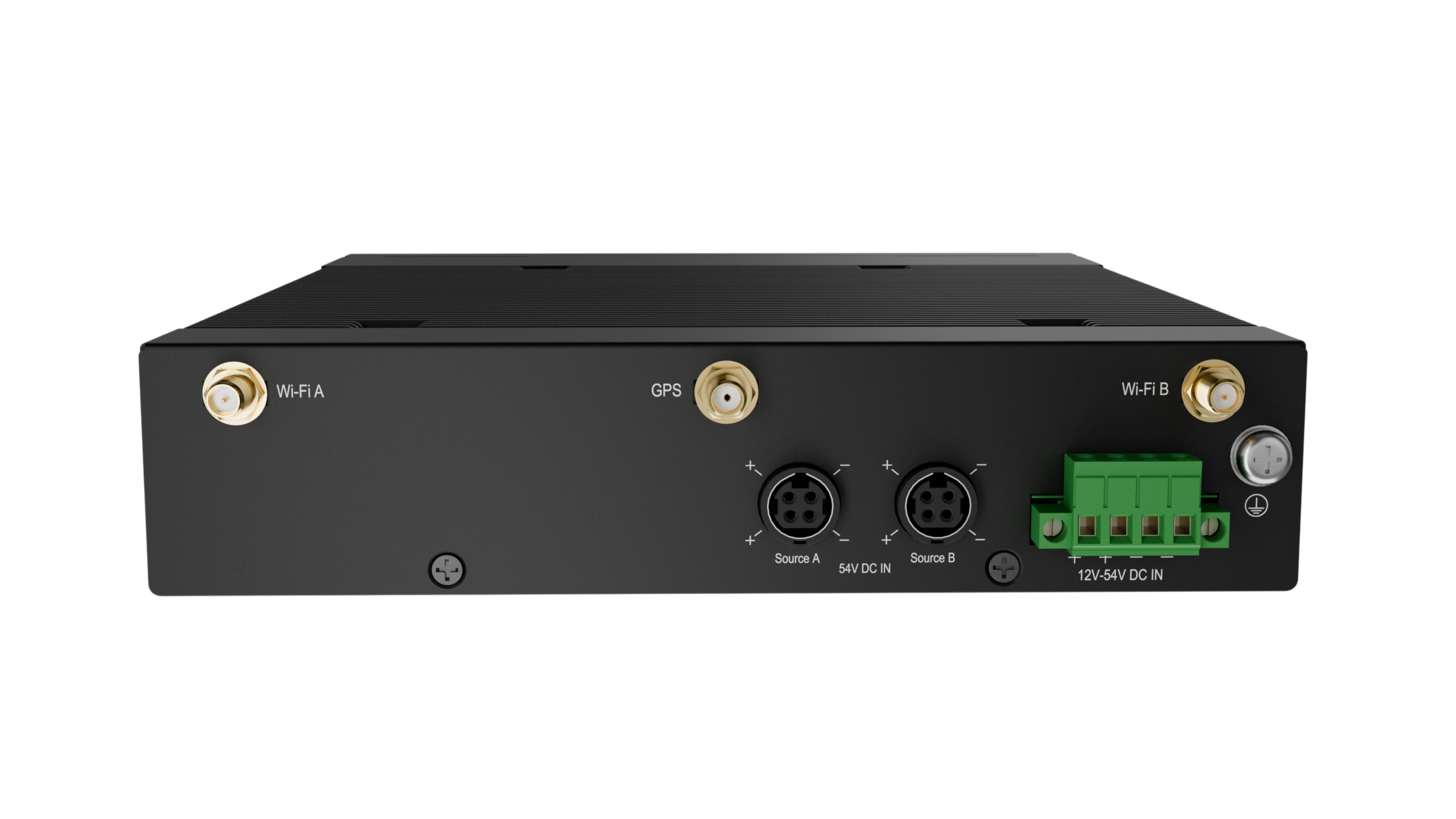

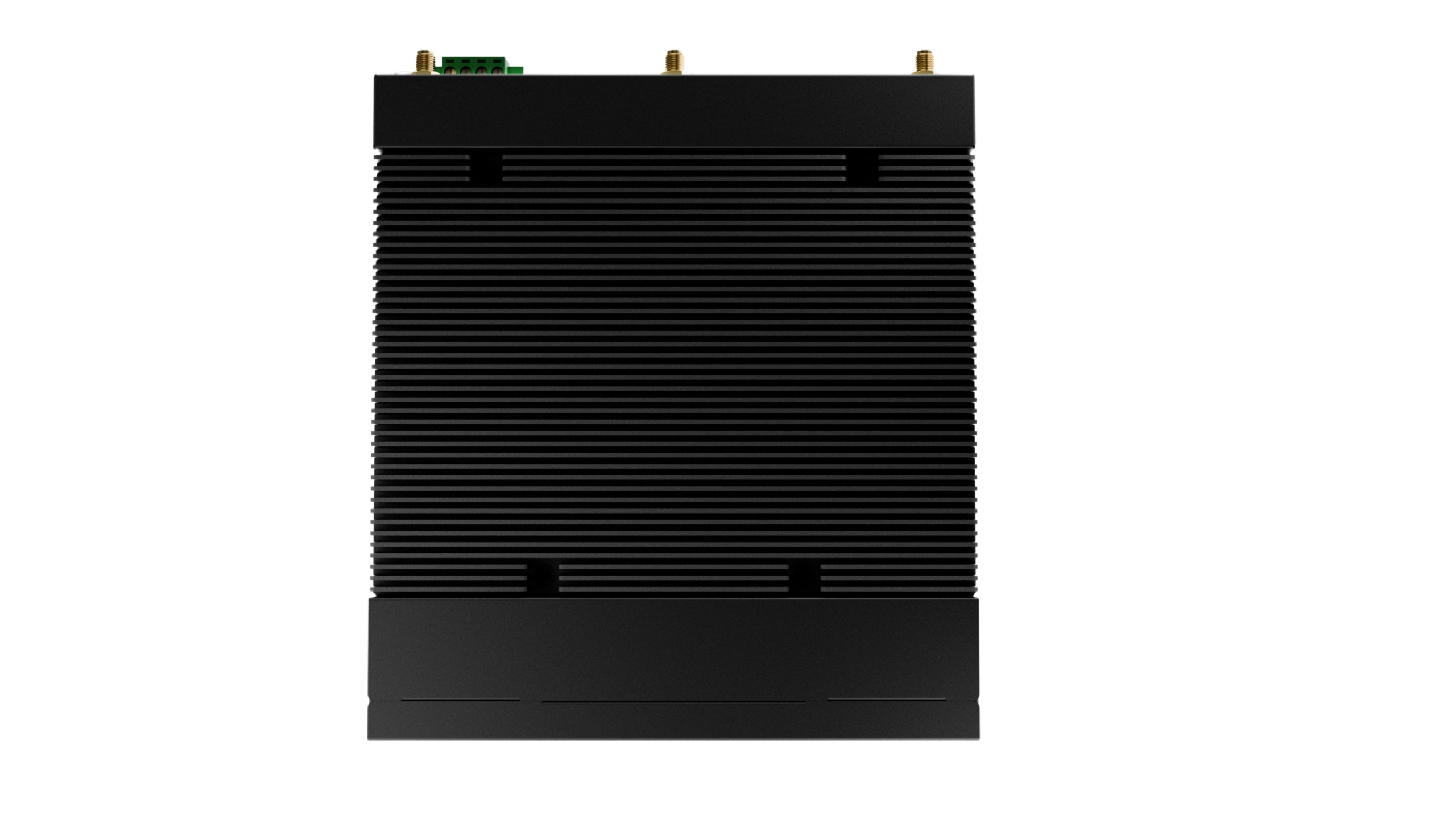

The MAX Orbit 8 is the flagship high-capacity multi-orbit gateway designed for mission-critical deployments requiring maximum throughput, interface density, and WAN aggregation performance.

It is engineered for enterprise, industrial, and infrastructure-scale environments where satellite, cellular, and fiber networks must be bonded, managed, and optimized simultaneously.

Enterprise-Grade Multi-Orbit Aggregation

Orbit 8 is designed for large-scale WAN orchestration across multiple network types.

• Multi-terminal satellite bonding (Starlink, OneWeb, Iridium supported ecosystems)
• 5G and fiber integration for hybrid WAN architectures
• 10G SFP+ and 10G Ethernet uplinks
• High-density multi-port architecture for complex deployments
• Unified orchestration via InControl cloud platform

Built for environments where network downtime is not acceptable.

Maximum Stability and Throughput Optimization

Orbit 8 delivers advanced WAN optimization across unstable and high-latency links.

• SpeedFusion bonding at multi-gig throughput levels
• SpeedFusion Boost for traffic smoothing and stabilization
• Dynamic WAN path optimization
• Continuous performance scoring and network health analytics

Ensures stable connectivity even under heavy load or degraded satellite conditions.

Infrastructure-Grade Edge Networking

Designed for rackmount and infrastructure deployments requiring high power and interface density.

• Wi-Fi 7 support for high-density wireless environments
• 8x 2.5G PoE+ WAN/LAN ports (240W PoE budget)
• 10G SFP+ and 10G Ethernet interfaces
• Dual USB-C WAN interfaces
• Edge compute with Docker (8GB storage + external expansion)
• Rackmount-ready form factor

Technical Summary

• WAN: 8x 2.5G + 10G Ethernet + 10G SFP+
• Wi-Fi: Wi-Fi 7 (2.4/5 GHz, 2×2 MIMO)
• VPN Throughput: up to 1 Gbps AES-256
• SpeedFusion: bonding, failover, Boost
• Power: up to 50W (plus PoE load)
• PoE: up to 8x 802.3at, 240W budget
• Users: 50–500 recommended
• Environmental: -40°C to 65°C

Best Fit Use Cases

• ISP and telecom infrastructure backup
• Energy and mining operations with high bandwidth demand
• Large-scale mobile command centers
• Distributed enterprise WAN aggregation
• Critical infrastructure redundancy (datacenters, utilities)
