Sierra Wireless MG90 5G

Semtech AirLink® MG90 High-Performance Multi-Network Vehicle Router. FirstNet™ deployed! The Semtech AirLink® MG90 is a high-performance LTE-Advanced Pro vehicle multi-networking platform, purpose-built to provide secure, always-on connectivity for mission-critical applications in public safety, transit, and field services.

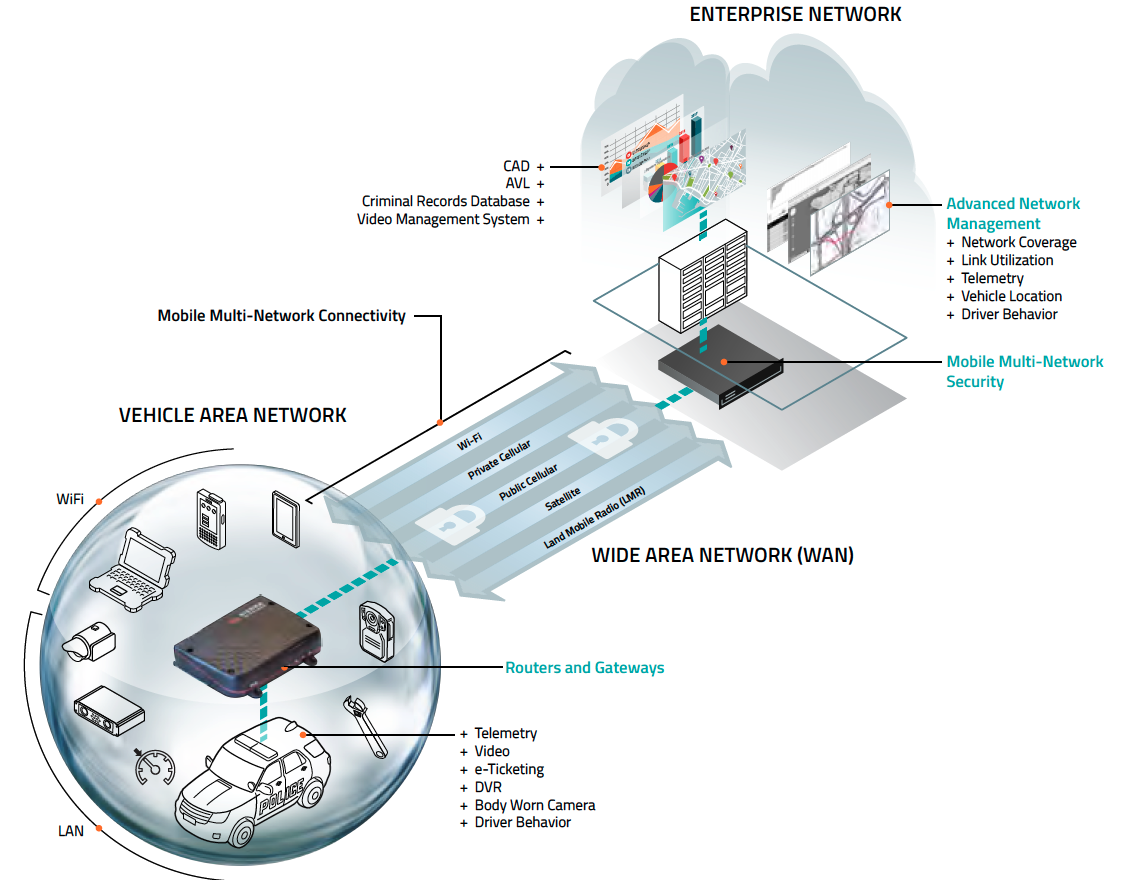

With extensible multi-network connectivity, the MG90 offers dual LTE-Advanced Pro, Dual Concurrent Gigabit Wi-Fi, and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems. The MG90 is FirstNet Ready™ with Band 14 support.

  • Selects the best available network based on user-defined policies
  • Seamless network handover and sub-second network switching
  • Consolidated security with the AirLink® Connection Manager (ACM)
  • Remote, real-time network insight and control with the AirLink® Mobility Manager (AMM)
  • Purpose-built for vehicles
  • FirstNet Ready™




MG90 Benefits

High-Performance Vehicle Networking Platform

EXTENSIVE MULTI-NETWORK CONNECTIVITY: The AirLink® MG90 offers up to 600 Mbps downlink and 150 Mbps uplink speeds over LTE Advanced Pro, 1.3 Gbps over dual radio, dual concurrent 3×3 MIMO 802.11ac Wi-Fi, and 5-port Gigabit Ethernet. The AirLink® MG90 can host up to 128 clients at any one time, and concurrently connect multiple mission-critical applications in and around the vehicle.

PURPOSE BUILT VEHICLE-READY DESIGN: Purpose-built for vehicle power environments, the AirLink® MG90 does not require any external power conditioning, is optimized to survive extreme transient surges and temperatures, and is sealed to meet IP64 and exceed MIL-STD-810G specifications. MG90 is also suitable for rail applications and is EN50155 certified for rolling stock.

CONNECTED VEHICLE AWARENESS: Offering built-in vehicle-ready I/O, Bluetooth, and Vehicle Telemetry interface, the MG90 enables remote monitoring of auxiliary devices and can collect OBD-II vehicle telemetry data.

Network Agility

POLICY-DEFINED LINK MANAGEMENT: With its built-in policy engine, the MG90 dynamically selects the best available network, based on a customized user-defined scoring system. Providing seamless network handover and sub-second network switching with its cognitive wireless system, the MG90 can automatically select the best available WAN connection to provide “always-on,” uninterrupted connectivity in any circumstance.

MOBILE MULTI-NETWORK SECURITY: Together with the AirLink® Connection Manager (ACM)—an advanced mobile-optimized VPN server—the MG90 provides secure data connections and retains a static IP address across multiple WAN networks. It consolidates the security for all connected technologies in the vehicle area network (VAN) into a single, centralized platform.

Advanced Network Management

NETWORK INSIGHT & CONTROL: Coupled with the AirLink® Mobility Manager (AMM), the MG90 supports a leading-edge, end-to-end network management solution to enable simplified, remote, and real-time mass configuration, control, and troubleshooting of all routers, connected mobile assets, and mission-critical applications. Available in the enterprise data center or in the cloud, the AMM seamlessly integrates with the Semtech AirLink® MG90, displaying a dashboard with an up-to-date view of the entire fleet, and delivers a continuous stream of rich, real-time network data, allowing users to observe, track and examine the behavior of hundreds of devices, networks, and connected vehicle parameters as it occurs.
