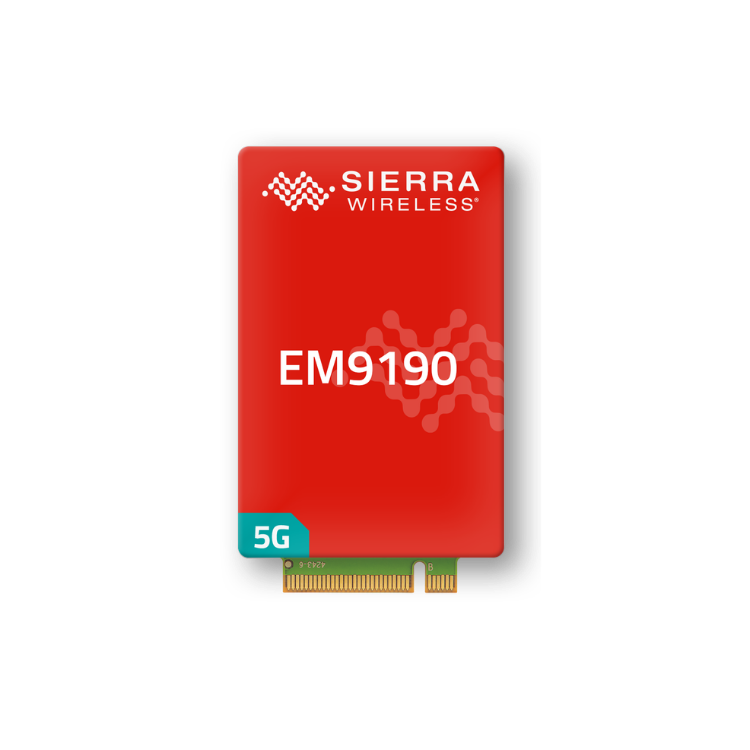

Semtech Semtech EM9190
5G NR Sub-6 GHz and mmWave Module
Planned Carrier: Telstra
Deploy next-generation products with a global module that supports 5G NR, as well as low and high power mmWave antenna modules
The EM9190 module is part of the EM Series offering global 5G connectivity. Designed in an M.2 form factor, the EM9190 is compatible with our EM7690 4G LTE-A Pro module, to help facilitate the migration and differentiation between 4G LTE and 5G.
This 5G NR Sub-6 GHz and mmWave embedded module delivers up to 5.5Gbps downlink speed and 3Gbps uplink speed. With automatic 4G and 3G fallback networks, and integrated GNSS receiver (GPS, GLONASS, BeiDou, and Galileo satellite systems supported), the EM9190 applies to a wide range of IoT applications such as industrial routers, home gateways, industrial and consumer laptops, rugged tablet PCs, video surveillance, and digital signage.
CBRS
Certified by the FCC for CBRS private networks to provide reliability, security, flexibility, and cost savings
Global Coverage
Worldwide coverage on a single module with industry and mobile network certifications to get you to market faster
Onboard SIM
Embedded SIM to simplify and add flexibility to IoT deployments. Carrier profile, M2M eUICC, and consumer eUICC are available based on customer use case
Location Services
GNSS receiver enables tracking and location-based services with dual L1 and L5 bands for increased accuracy
Enhanced Coverage
Dual SIM single standby (DSSS) switches between networks quickly to stay connected
Secure Boot
Prevents unauthorized code on the target to keep your connectivity secure
Industrial-Grade
Tested for harsh environments and extreme temperatures
Specifications
|
5G NR
|
|
|---|---|
|
Category
|
5G NR Sub-6 and mmWave
|
|
Frequency Bands
|
Bands Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79, mmWave: n257, n258, n260, n261
|
|
4G LTE
|
|
|---|---|
|
Category
|
Cat-20
|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
|
|
Data Speed
|
|
|---|---|
|
Peak Download Rate
|
5.5 Gbps
|
|
Peak Upload Rate
|
3Gbps
|
|
Location Services
|
|
|---|---|
|
Satellite Systems
|
Galileo, Glonass, GPS, Beidou (Bands: L1 and L5)
|
|
Embedded Software
|
|
|---|---|
|
System Drivers
|
Windows® 10, Linux, Android RIL
|
|
INTERFACES
|
|
|---|---|
|
USB
|
USB 3.1
|
|
PCIe
|
PCIe generation 3 (or 2), 1 lane
|
|
HARDWARE
|
|
|---|---|
|
Dimensions
|
30x52x2.38mm
|
|
APPROVALS
|
|
|---|---|
|
Carrier
|
AT&T (FirstNet), NTT Docomo, T-Mobile, Verizon
|
|
Planned Carrier
|
Telstra
|
|
Regulatory
|
FCC, GCF, IC, PTCRB, EU RED, JATE/Telec
|
