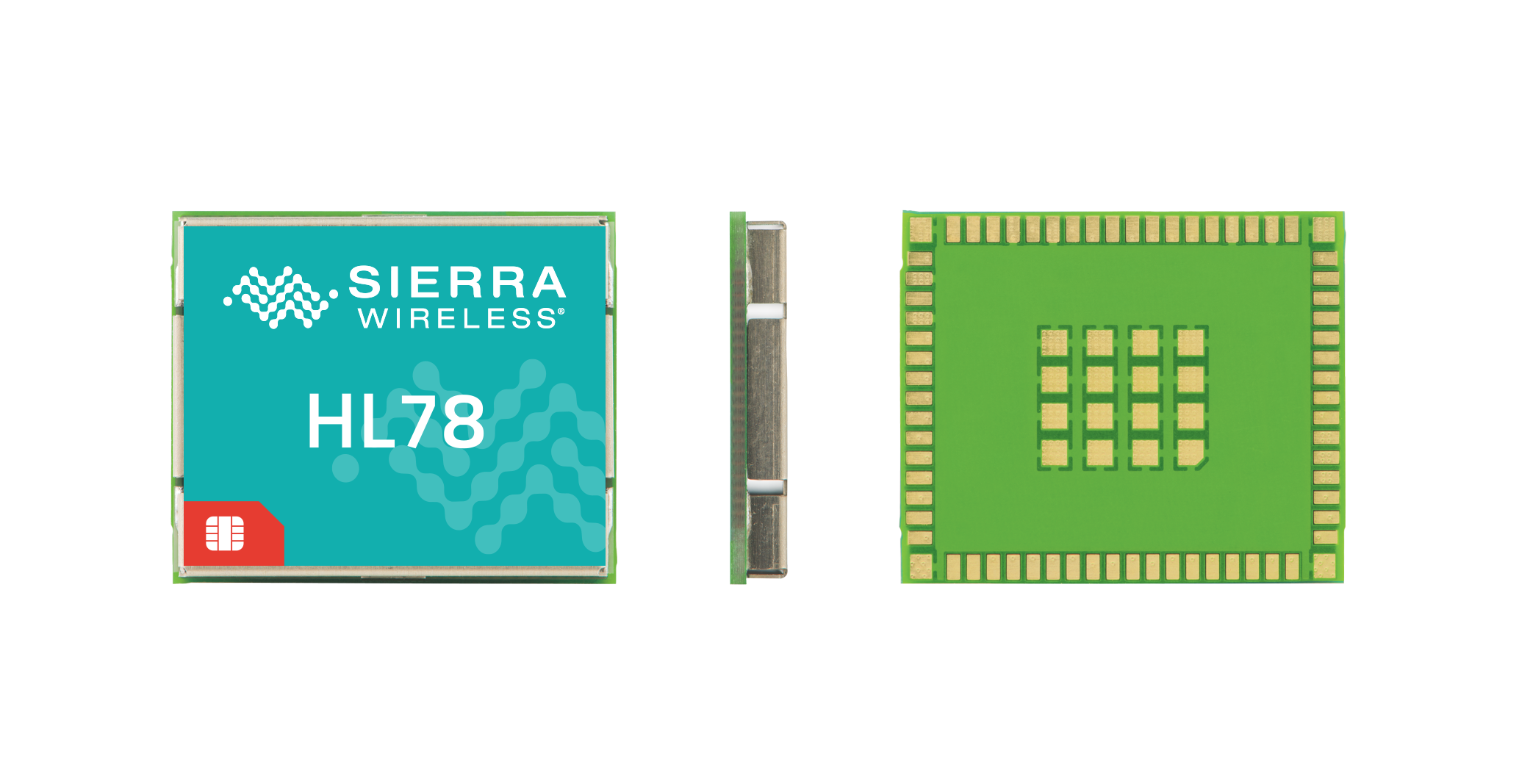

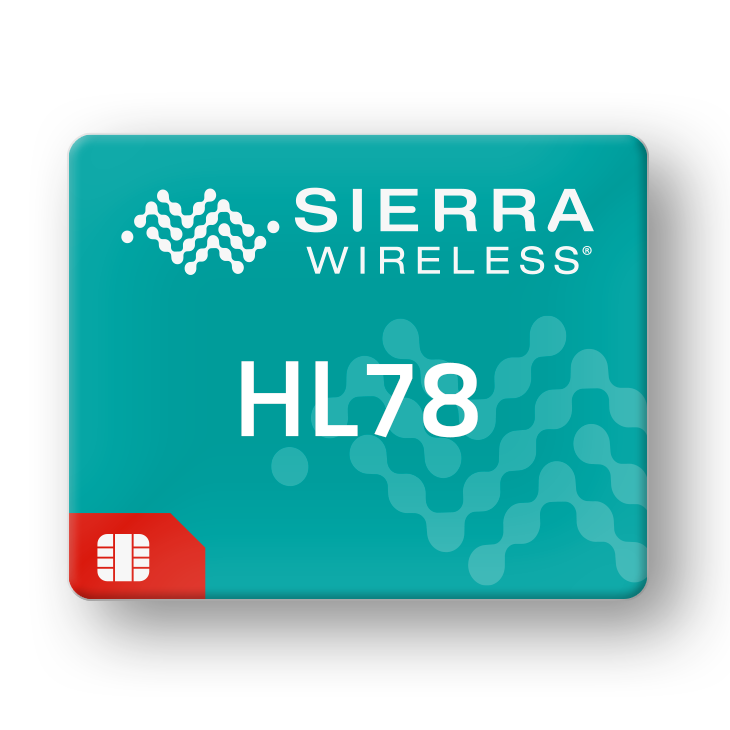

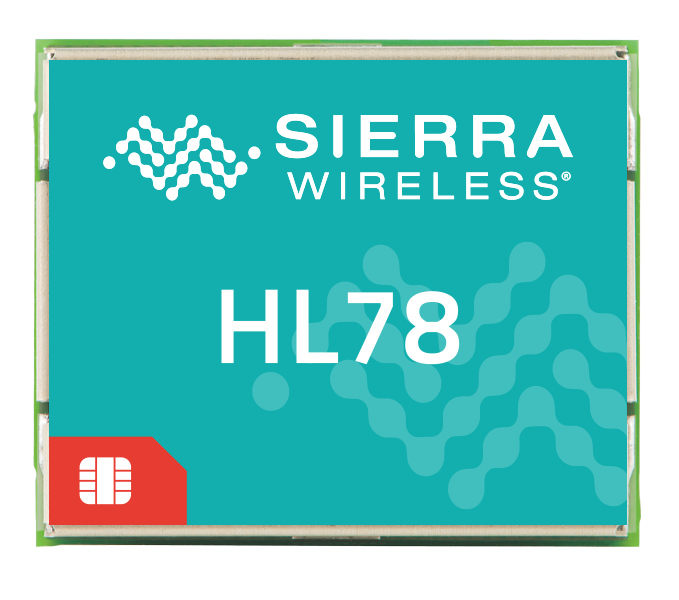

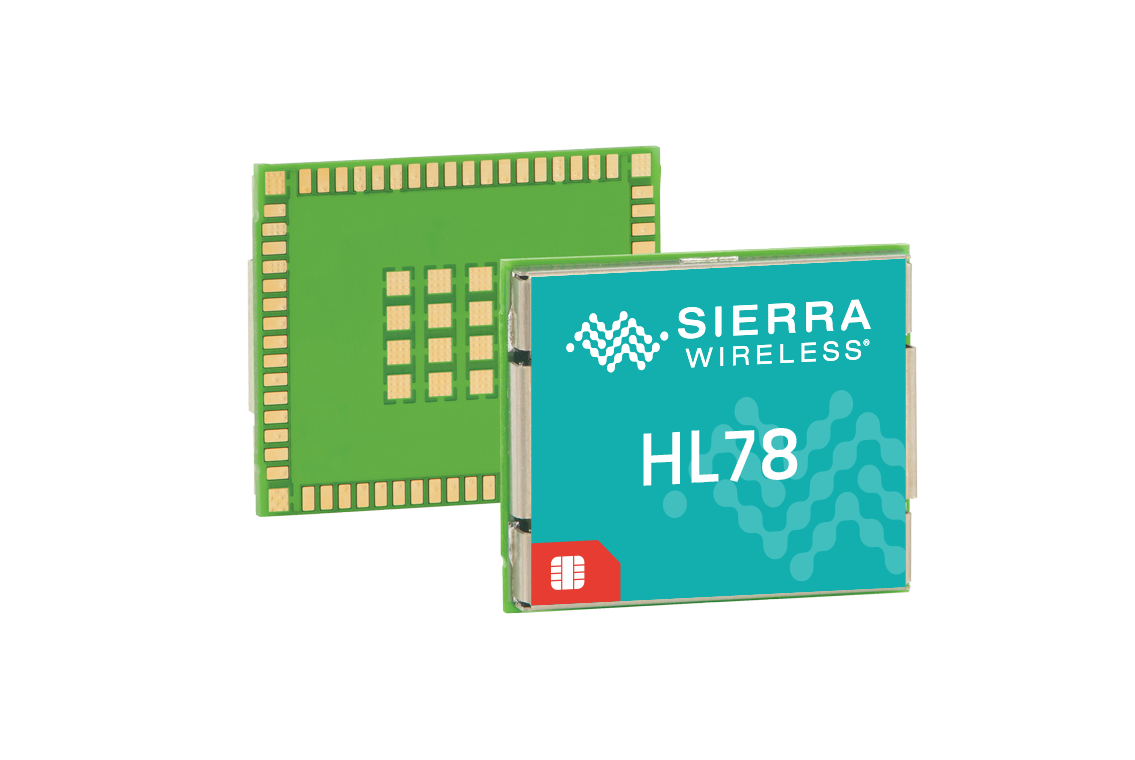

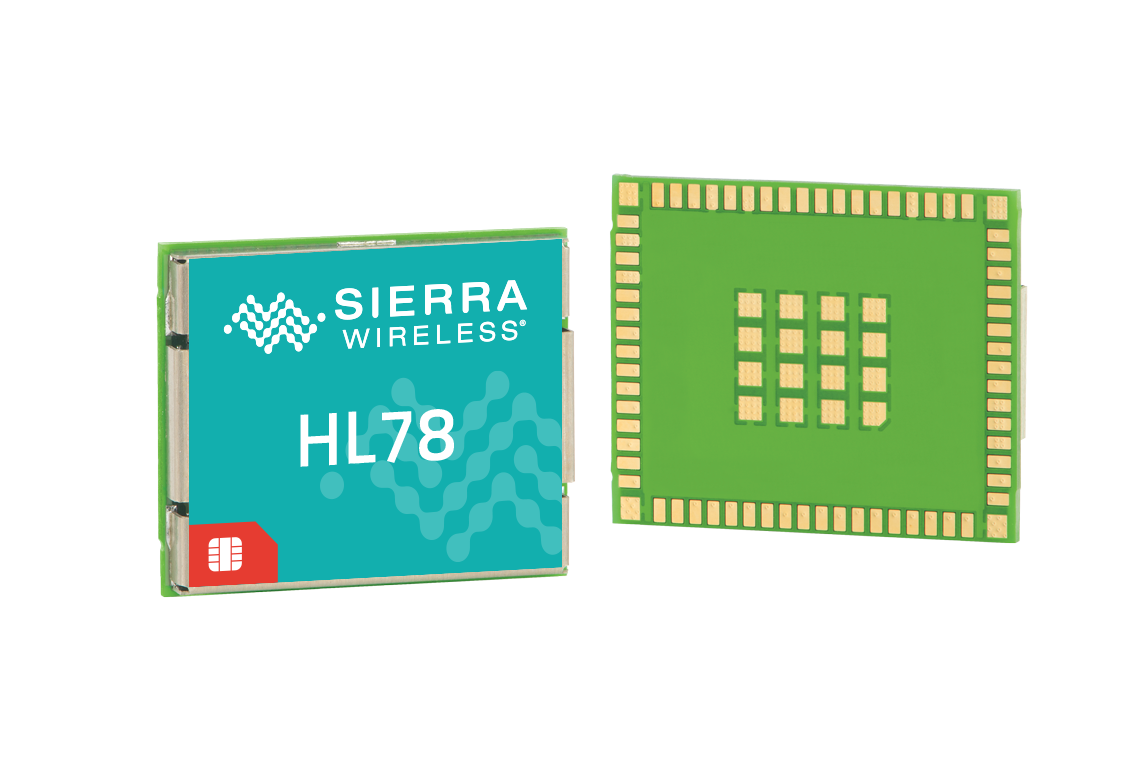

Semtech Semtech HL7802
LPWA Module
Carrier: Vodafone, AT&T, Verizon, Orange, Semtech, T-Mobile
Multi-mode LPWA module offers best-in-class power performance for global LTE-M, NB-IoT, 2G, and GNSS networks
The HL7802 module for Cat-M1/NB1 worldwide networks with 2G fallback is fully compliant with the 3GPP Release 13 standard. It provides a low-cost, best-in-class power technology for low-bandwidth IoT applications with extended reach beyond traditional cellular.
This module is ideal for simple static sensor applications, or real-time fixed or mobile applications such as asset tracking, industrial equipment monitoring, consumer wearable devices, smart city deployments, healthcare applications, and agricultural monitoring devices.
Ready-to-Connect
Get instant access to AirVantage Smart Connectivity to reduce the total cost of ownership, strengthen end-to-end security, and simplify operations with a single point of accountability and management platform
Common Form Factor
Compact CF3® design to migrate between technologies and future-proof product platforms
Global
Worldwide coverage on a single module with industry and mobile network certifications to get you to market faster
FOTA Upgrades
FREE firmware over-the-air (FOTA) upgrades future-proof deployments and keeps them secure
Cloud Connected
Securely collect data and remotely manage your IoT deployments with integrated AirVantage® cloud services
Ultra-Low Power Mode
Best-in-class power performance extending the life of battery-operated devices by 5-10X
Location Services
Integrated GNSS receiver enables tracking and location-based services
TCP/IP Stack
Embedded stack to easily communicate over the internet, supporting a rich set of protocols including HTTP/S, TCP, UDP, TLS, DTLS
Programmability
Basic and Extended AT Commands simplify development
Industrial-Grade
Tested for harsh environments and extreme temperatures
Specifications
|
4G LTE
|
|
|---|---|
|
Category
|
Cat-M1/NB1
|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
|
|
2G
|
|
|---|---|
|
GPRS
|
850, 900, 1800, 1900
|
|
GSM
|
850, 900, 1800, 1900
|
|
Data Speed
|
|
|---|---|
|
Peak Download Rate
|
Cat-M 300Kbps, Cat-NB1 27Kbps
|
|
Peak Upload Rate
|
Cat-M 375Kbps, Cat-NB1 65Kbps
|
|
Location Services
|
|
|---|---|
|
Satellite Systems
|
GPS+Glonass
|
|
Embedded Software
|
|
|---|---|
|
Firmware
|
Secure boot, Pre-certified firmware
|
|
System Drivers
|
|
|---|---|
|
System Drivers
|
Linux Driver: Standard ACM
|
|
INTERFACES
|
|
|---|---|
|
UART
|
1 X 8-wire
|
|
ADC
|
2
|
|
GPIO
|
8
|
|
Tx ON Indicator
|
1
|
|
SIM interface 1.8V/3V
|
1
|
|
HARDWARE
|
|
|---|---|
|
CF3 Form Factor
|
LGA
|
|
Dimensions
|
15x18x2.4mm
|
|
Temperature Range
|
Industrial Grade: -40°C / +85°C
|
|
APPROVALS
|
|
|---|---|
|
Carrier
|
AT&T, Orange, Verizon, Vodafone, Semtech, T-Mobile
|
|
Regulatory
|
FCC, GCF, IC, PTCRB, RCM, RED
|
|
EMBEDDED SIM
|
|
|---|---|
|
EMBEDDED SIM
|
Optional Ready-to-Connect (Semtech USIM)
|
|
CLOUD SERVICES
|
|
|---|---|
|
CLOUD SERVICES
|
Free FOTA upgrades, Connectivity Management option, Device Management option
|
