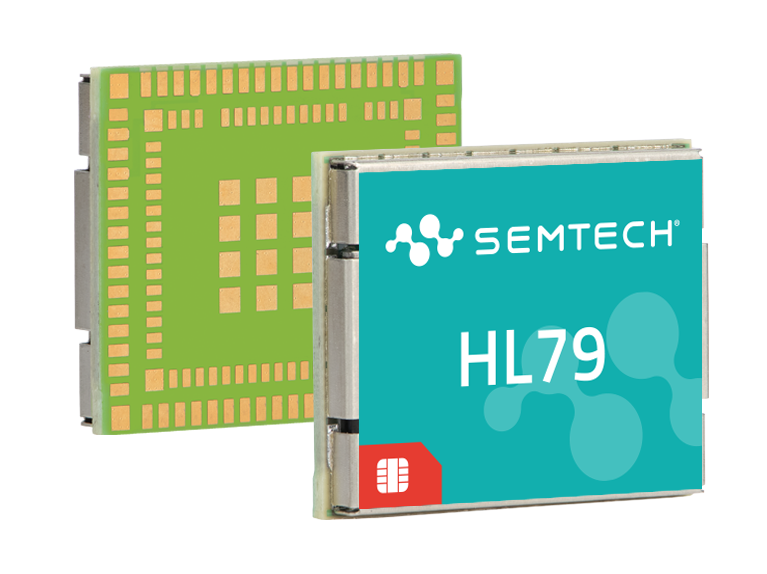

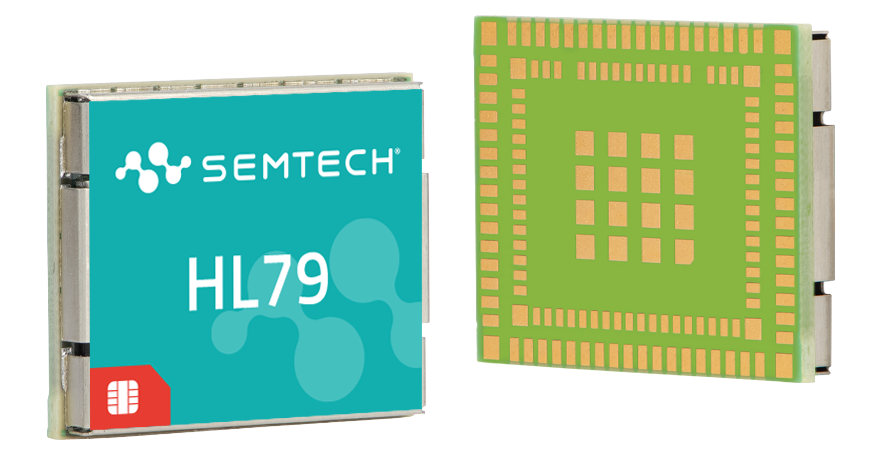

Semtech Semtech HL7900
Global 5G LPWA Module
Air Interface: Cat-M1, Cat-NB2, NTN*
Region: Global
Part Number: 6001458
The HL7900 5G LPWA module is an advanced solution designed for low-power, long-lasting deployments requiring deep area coverage, combining efficiency, longevity, and security. This ultra-low power module reduces current consumption by up to 80%1, thereby quadrupling the battery life of your IoT deployments. The HL7900 also features integrated GNSS* and support for 3GPP’s Release 14/15/16/17*, enabling new-generation low-power use cases while providing flexible connectivity options, enhanced coverage, and cost savings. Leveraging Semtech’s 30 years of expertise in low-power solutions and a long-standing partnership with Sony Altair, the HL7900 simplifies and de-risks low-power deployments across critical applications such as smart energy, smart cities, logistics and asset tracking.
1Compared to previous generation HL78 module.
Best in Class Power Efficiency
The HL7900 enables the next generation of battery-powered IOT devices with revolutionary decreases in power consumption across all operating modes (up to 4x lower than HL78).
Unlicensed Band Radio*
With optional use of a secondary 802.15.4 radio supporting <1GHz and 2.4GHz frequencies, customers can expand their connectivity options and further optimize their BOM by replacing an external wireless MCU.
Device Longevity
With support for 3GPP Releases 14/15*/16*/17*, the HL7900 future-proofs your deployments and enables device longevity.
Edge Processing
With its integrated low-power MCU, the HL7900 can eliminate a host uP and enable a cost- and power-optimized system.
Location Services*
Integrated GNSS receiver with assisted GNSS enables tracking and location-based services. Optional use of Wi-Fi scan is also supported as an alternative to GNSS.
NTN*
Get uninterrupted global coverage with NB-IoT over satellite support.
Private Networks
Band 8 with NAD to enable utilities in the US to deploy their own 900MHz private network.
End-to-End Security
Security keys encrypted are stored in a secure element. FREE firmware over-the-air (FOTA) upgrades future-proof deployments and keep them secure.
Common Form Factor
Compact CF3® design simplifies migration between technologies and enables scalability.
Ready-to-Connect**
Get instant access to our Smart Connectivity to reduce total cost of ownership, strengthen end-to-end security, and simplify operations with a single point of accountability and management platform.
TCP/IP Stack
Embedded stack to easily communicate over the internet, supporting a rich set of protocols including HTTP/S, TCP, MQTT, LWM2M, UDP, TLS, DTLS.
*Available in a future firmware release
**Optional
Specifications:
|
4G LTE
|
|
|---|---|
|
Category
|
Cat-M1/NB2 (NTN*)
|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B23*, B25, B26, B28, B66, B85, B255*, B256*
|
|
Data Speed
|
|
|---|---|
|
Peak Download Rate
|
Cat-M: 590 kbps, Cat-NB2: 127 kbps
|
|
Peak Upload Rate
|
Cat-M: 1100 kbps, Cat-NB2: 158 kbps
|
|
Location Services
|
|
|---|---|
|
Satellite Systems
|
GPS & Glonass*
|
|
Embedded Software
|
|
|---|---|
|
Firmware
|
Secure boot, Pre-certified firmware
|
|
INTERFACES
|
|
|---|---|
|
UART
|
1 X 8-wire & 1 X 4-wire
|
|
USB
|
0
|
|
ADC
|
2
|
|
GPIO
|
8
|
|
Tx ON Indicator
|
1
|
|
SIM interface 1.8V/3V
|
1
|
|
HARDWARE
|
|
|---|---|
|
CF3 Form Factor
|
LGA
|
|
Dimensions
|
15x18x2.4mm
|
|
Temperature Range
|
Industrial Grade: -40°C / +85°C
|
|
APPROVALS
|
|
|---|---|
|
Regulatory
|
PTCRB, GCF, FCC (USA), ISED (Canada), CE(EU), JRF/JPA (Japan), NCC (Taiwan), RCM (Australia)
|
|
Carrier
|
Verizon, AT&T, KDDI, T-Mobile US,
Planned: Docomo, Vodafone |
|
EMBEDDED SIM
|
|
|---|---|
|
EMBEDDED SIM
|
Optional Ready-to-Connect (Semtech USIM), iSIM*
|
|
CLOUD SERVICES
|
|
|---|---|
|
CLOUD SERVICES
|
Free FOTA upgrades, Connectivity Management option, Device Management option
|
