Semtech Semtech MC7411
Industrial Grade IoT Module
Carrier: T-Mobile, AT&T, Verizon, US Cellular, Telus, SouthernLINC
Optimized 4G LTE connectivity offering 150 Mbps uplink speed and unprecedented support for LTE bands in North America.

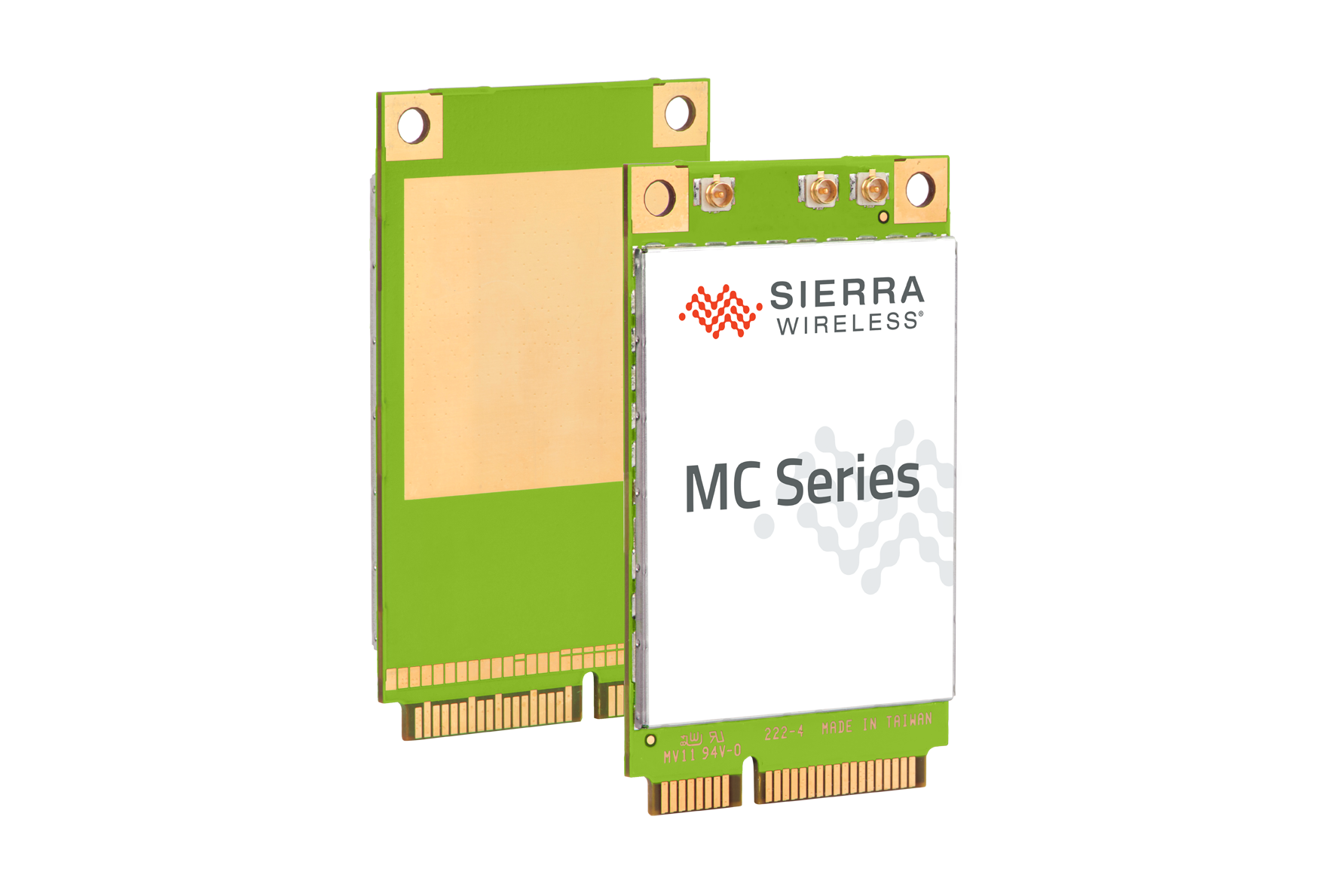

The MC7411 wireless module is part of the MC Series, delivering high-speed connectivity and a wide selection of advanced air interfaces, including LTE Advanced with carrier aggregation.
This LTE-A Cat-7 embedded module delivers 150 Mbps uplink speed, supports private LTE bands, and enables secure and reliable public safety communications on the FirstNet Band 14. Based on the PCI Express Mini Card standard with USB 3.0 and USB 2.0 interfaces, the MC7411 module offers an easy upgrade path to new network technologies and global access to high-speed networks.
MC7411 is ideal for public safety, industrial M2M, and mobile computing solutions.
CBRS
Certified by the FCC for CBRS private networks to provide reliability, security, flexibility, and cost savings
eUICC
Support for eUICC SIM profile management on external SIM, adding flexibility to IoT deployments
Public Safety
Approved by AT&T for FirstNet™ public safety network to enhance security and provide new capabilities for first responders
Location Services
Integrated GNSS receiver enables tracking and location-based services for increased accuracy
Enhanced Coverage
Dual SIM single standby (DSSS) switches between networks quickly to stay connected
FOTA Upgrades
FREE firmware over-the-air (FOTA) upgrades future-proof deployments and keep them secure
Industrial-Grade
Tested for harsh environments and extreme temperatures
Secure Boot
Prevents unauthorized code on the target to keep your connectivity secure
Specifications
|
4G LTE
|
|
|---|---|
|
Category
|
Cat-7
|
|
Frequency Bands
|
B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
|
|
3G
|
|
|---|---|
|
HSPA+
|
B2, B4, B5
|
|
Data Speed
|
|
|---|---|
|
Peak Download Rate
|
300Mbps
|
|
Peak Upload Rate
|
150Mbps
|
|
Location Services
|
|
|---|---|
|
Satellite Systems
|
Galileo, Glonass, GPS, BeiDou
|
|
Embedded Software
|
|
|---|---|
|
Firmware
|
Secure boot, Pre-certified firmware
|
|
System Drivers
|
Windows® 8, Windows® 8.1, Windows® 10, Linux, Android RIL
|
|
INTERFACES
|
|
|---|---|
|
USB
|
USB 3.0, USB 2.0 High Speed
|
|
SIM interface 1.8V/3V
|
2
|
|
HARDWARE
|
|
|---|---|
|
Dimensions
|
51x30x3.6mm
|
|
Antenna
|
Diversity, MIMO, GNSS Bias, Connectors: Main, Aux/GNSS, GNSS
|
|
Temperature Range
|
-30°C / +70°C, -40°C / +85°C
|
|
APPROVALS
|
|
|---|---|
|
Carrier
|
AT&T, SouthernLINC, T-Mobile, Telus, Verizon, US Cellular
|
|
Regulatory
|
FCC, GCF, IC, PTCRB
|
