The TGX.04 is a 4* 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 400 to 6000MHz. It uses four dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receiving signal levels, leading to better coverage and performance, especially in urban environments. It is designed for multiple mounting options to allow for a variety of use cases and is supplied with 3m of low-loss cable with SMA(M) connectors as standard.


  • Highest efficiency for 400-6000MHz wideband applications
  • Fully 5G/4G Cellular Operational
  • Cross Polarized Dipole Antennas
  • IP67 Rated Enclosure
  • Omnidirectional Gain Patterns leading to better coverage

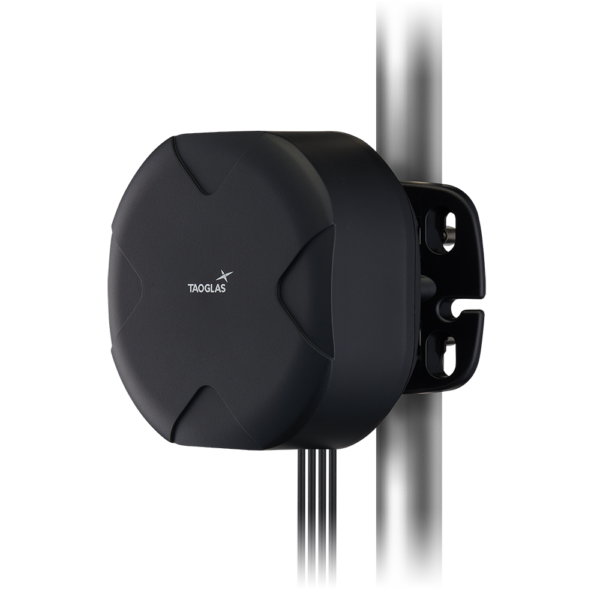

  • Multi-function bracket including Wall, Pole, and Glass Mount options
  • Cable: 3m TGC-200 as standard but fully customizable
  • Connector: SMA Male Straight as standard but fully customizable
  • Dimensions: 165 * 165 * 149 mm(Including Bracket)
  • RoHS & Reach Compliant


  • Agriculture and Rural 5G
  • Coverage enhancement systems
  • Commercial Transportation
  • Connected Enterprise
  • Public Safety and First Responder
