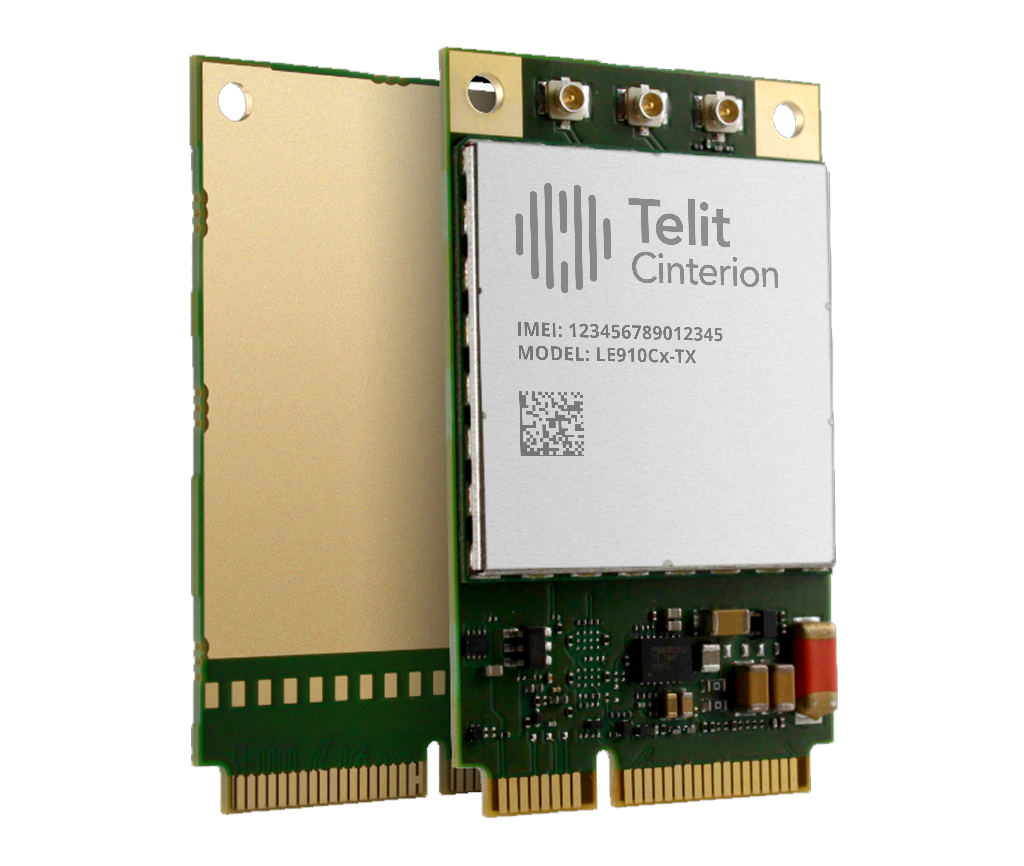

Telit LE910Cx ThreadX mPCIe Series
LTE Cat 1/4 | Data Cards
mPCIeQualcomm MDM9207LTE Cat-4LTE Cat-1
Full-size, One-sided PCI Express Mini Card
- Best-in-class 3GPP Rel 10 platform
- Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
- Battery-friendly 1.8V GPIO
- Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature range
- Internet-friendly with integrated TCP/IP and UDP/IP stacks
- Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
- Firmware over-the-air update
Cellular Features
- LTE FDD Cat 1, 3GPP Release (Rel) 10 compliant
- LTE FDD Cat 4, 3GPP Rel 10 compliant
- Rx diversity and MIMO DL 2×2
- Single Rx option
- VoLTE support
- SMS over IMS
- Built-in UDP/TCP/FTP/SMTP stack
- IPv4/IPv6 stack
- Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Cinterion custom AT commands
- SIM application toolkit
- OMA-DM Telit Cinterion software management
- Simultaneous support of GPS, GLONASS, BeiDou, Galileo, QZSS
- Compliant with GSMA SGP.22 Remote SIM Provisioning (RSP) standard
- Validated against Telit Cinterion NExT SGP.22 eSIMs
Certifications
- FCC/IC, PTCRB, GCF (North America)
- RCM (Australia)
- Jade/Telec (Japan)
- RED/GCF (Europe)
- REACH and RoHS compliant
Hardware & Electrical Features
- Dimensions 51 x 30 x 3.2 mm
- mini PCIe (mPCIe) module
- Temperature range: -40° C to +85° C
- Output power: Class 3 (0.2 W, 23 dBm) @ LTE
- Supply voltage: 3.3 V dc +/- 9%
