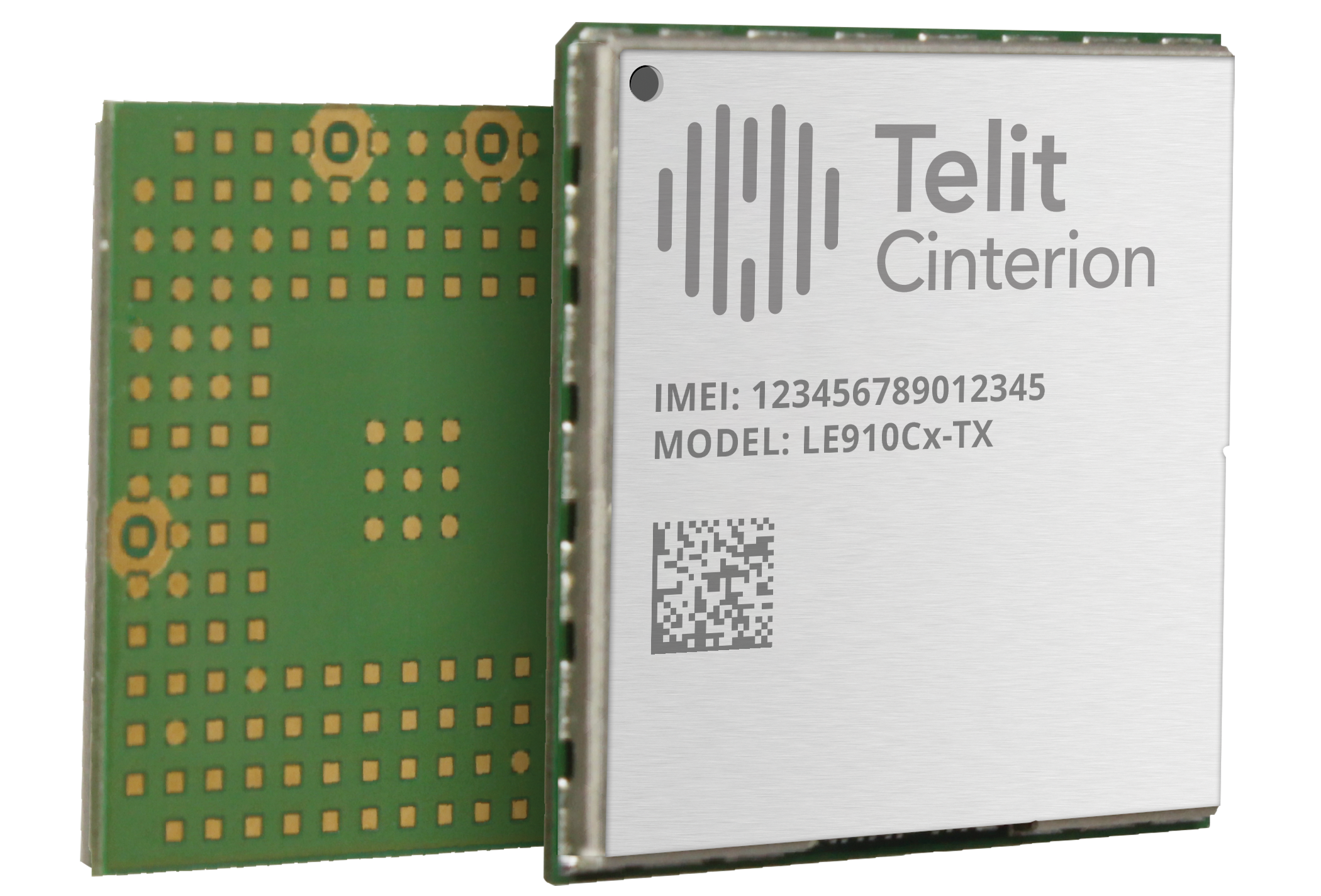

The LE910C1 and LE910C4 4G LTE modules are compliant with the 3GPP Release (Rel) 10 and are available with optional quad-constellation GNSS capability.

• Best-in-class 3GPP Rel 10 platform
• MTC features ready according to 3GPP Rel 12
• Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
• Internet-friendly with integrated TCP/IP and UDP/IP stacks
• Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module

Product Features

• LTE FDD Cat 4, 3GPP Release 10 compliant
• LTE FDD Cat 1, 3GPP Release 10 compliant
• Rx Diversity and MIMO DL 2×2
• Single Rx option
• VoLTE support
• SMS over IMS
• Built in UDP/TCP/FTP/SMTP stack
• IPv4/IPv6 stack
• Control via AT commands according to 3GPP
• TS 27.005, 27.007 and Telit Cinterion Custom AT commands
• SIM application Tool Kit
• OMA-DM Telit Software Management
• Simultaneous support of GPS, GLONASS, BeiDou, Galileo, QZSS
• Compliant with GSMA SGP.22 Remote SIM Provisioning (RSP) standard
• Validated against Telit Cinterion NExT SGP.22 eSIMs

Certifications

• FCC/ISED, PTCRB, MNOs (North America)
• RCM, MNO (Australia)
• RED/GCF (Europe)
• JRL/JTBL (Japan)
• Enacom, Anatel, CRC, MTC (Latin America)

Hardware & Electrical Specifications

• Dimensions: 28.2 x 28.2 x 2.2mm
• Dimensions LE910C1-WWX and LE910C4-WWX: 29.4 x 29.4 x 2.2 mm
• Extended temperature range: -40 °C to +85 °C
• LGA form factor

Supply voltage range:
