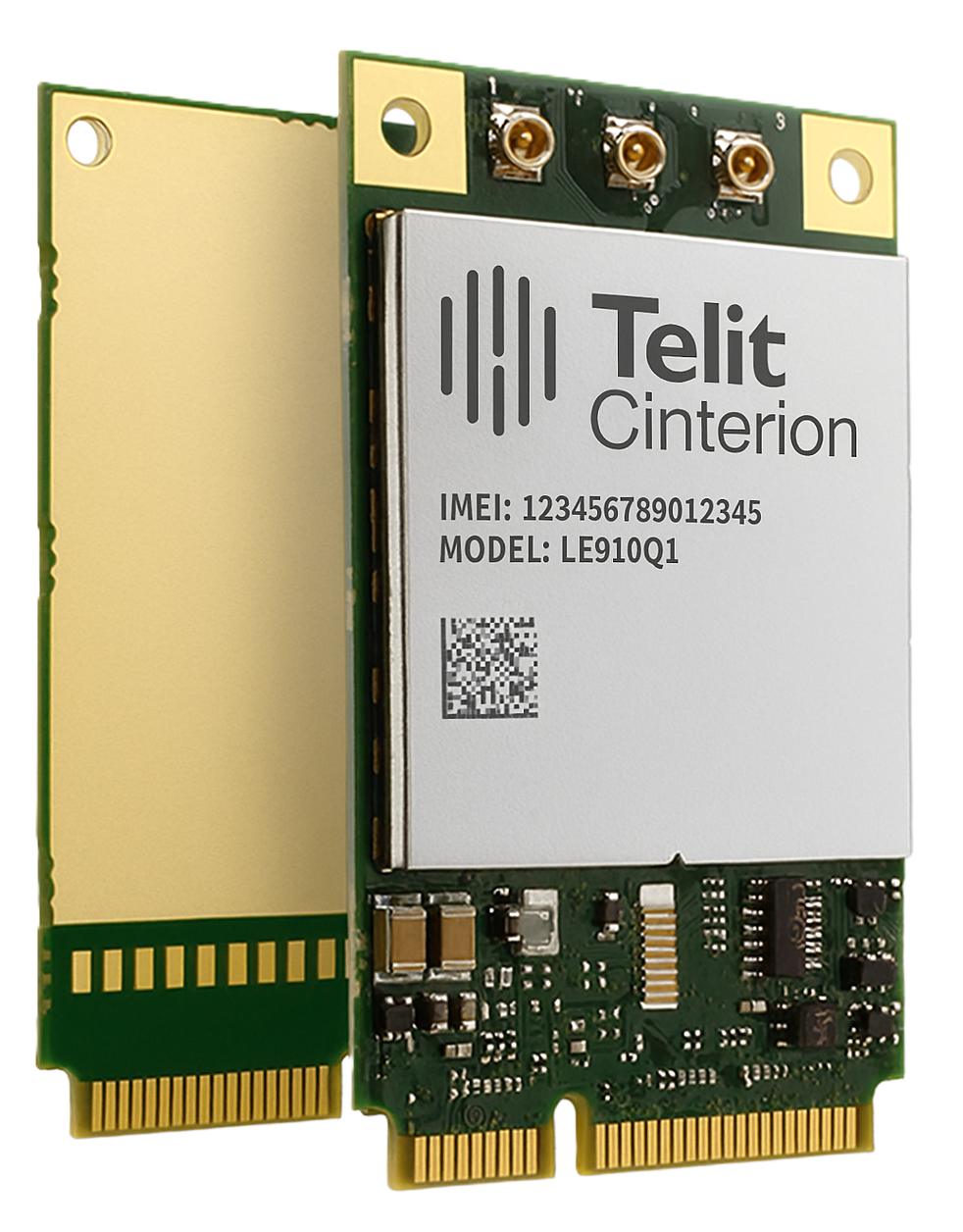

The LE910Q1 series mini PCIe (mPCIe) modules leverage a global SKU for worldwide deployments. The LE910Q1 mPCIe LTE Cat 1 bis modules have indoor and outdoor location capabilities based on Wi-Fi, cellular and GNSS for flexible tracking.

• LTE FDD Cat 1 bis 3GPP Release (Rel) 14 compliant
• Single LTE antenna
• Built-in UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP stack
• IPv4/IPv6 stack

Product Features

• LTE FDD Cat 1 bis 3GPP Rel 14 compliant
• Single LTE antenna
• Built-in UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP stack
• IPv4/IPv6 stack
• Control via AT commands according to 3GPP
• TS 27.005, 27.007 and Telit Cinterion custom AT commands
• Wi-Fi scan
• Embedded GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS) only LE910Q1-WWG variants
• Compliant with GSMA SGP.22 Remote SIM Provisioning (RSP) standard
• Validated against Telit Cinterion NExT SGP.22 eSIMs

Certifications

• FCC/ISED, PTCRB, RED, GCF, RCM
• AT&T, Verizon, T-Mobile
• NTT Docomo, KDDI

Hardware & Electrical Specifications

• Dimensions 51 x 30 x 3.6 mm
• 181-pin LGA interface
• 10 I/O ports (@1.8V), including multifunctional I/Os
• USB 2.0 HS
• UART
• 8 V SIM interface
• RF pad
• Industrial temperature range: -40°C to +85°C
• Output power:
  • Class 3 (0.2 W, 23 dBm) @ LTE
• Supply voltage range:
  • Nominal: 3.3 VDC
