Wi-Fi Modules

WLAN and ultra-low-power options deliver secure Wi-Fi for IoT

Embedding wireless functionality into industrial and commercial devices for superior performance and reliability has become unimportant in engineering. Adding multiple wireless technologies from cellular, Wi-Fi, Bluetooth, or GNSS to the design and achieving performance targets requires much more engineering effort.

Take full advantage of module features to make these various radios work in tandem without trouble, saving design, testing and regulatory certification resources and reduce time to market while boosting customer satisfaction.

  • IEEE 802.11 a/b/g/n/ac Wi-Fi-compliant modules
  • Single- and dual-band Wi-Fi with BT/BLE combo modules (BT 5 compliant)
  • Embedded customer application processor and complete application development tools (ADE, AppZone)
  • Advanced security (WPA3)
  • Easy provisioning (via Wi-Fi and BLE) for mass deployments
  • Industrial operating temperature and environmental tolerance
  • Cloud provider ready (Azure and AWS certified)
  • User-friendly firmware upgrade (over-the-air firmware upgrade)

Model Wi-Fi Protocol BT/BLE Protocol RF Operating Frequency Antenna Options Type

310G4 Family

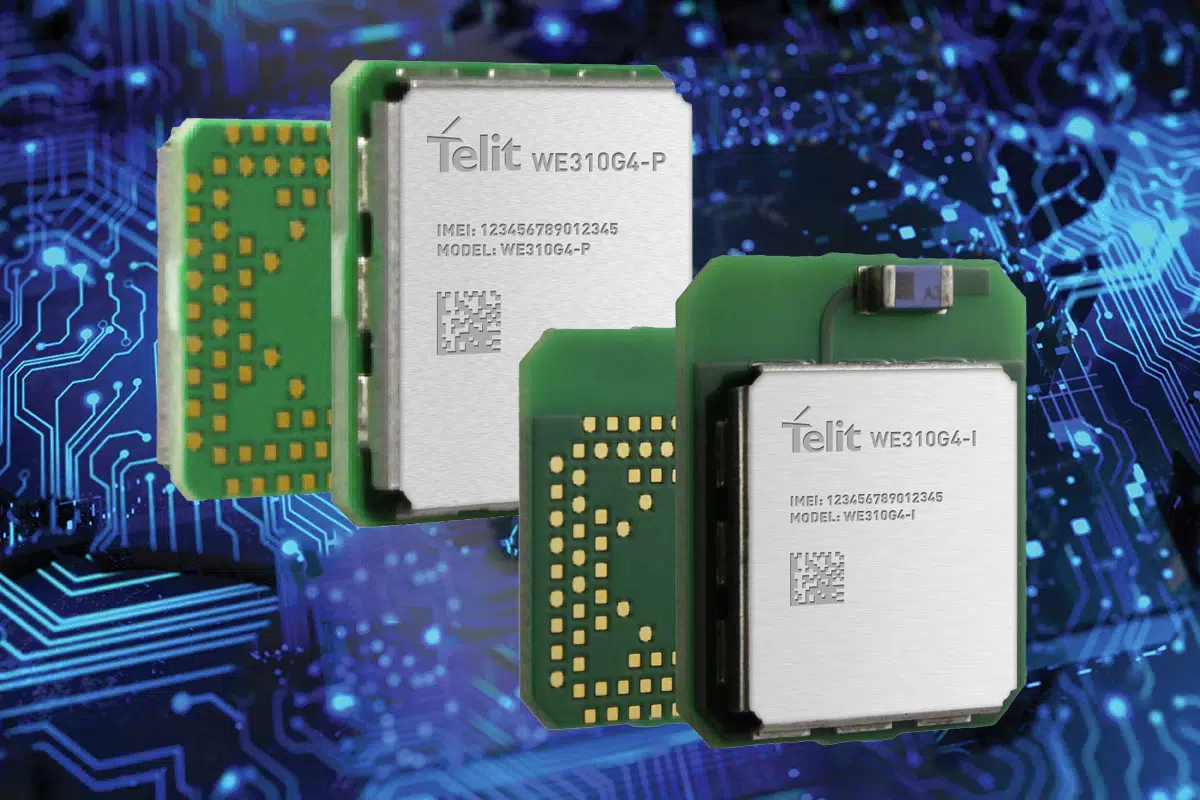

WE310G4

802.11 a/b/g/n BLE 5.0 2.4 GHz, 5Ghz WE310G4-I with antenna, WE310G4-P without antenna Standalone Module

310F5 Family

WE310F5

802.11 b/g/n BLE 5.0 2.4GHz WE310F5-I with antenna, WE310F5-P without antenna Standalone Module

xL865 Family

WL865E4-P

802.11 a/b/g/n BLE 5.0 2.4GHz, 5Ghz RF pad Standalone Module

xE866 Family

WE866C6-P

802.11 a/b/g/n/ac BT/BLE-5 2.4GHz, 5Ghz RF pad LTE Bundling Linux Companion

WE866C3-P

802.11 a/b/g/n/ac BT/BLE-4.2 2.4GHz, 5Ghz RF pad LTE Bundling Linux Companion

WE866A1-P

802.11 b/g/n NA 2.4GHz RF pad LTE Companion

Standalone Bluetooth

Bluetooth Low Energy (BLE) and NFC support. Certified plug-and-play solutions.

Key Features:

  • Hosted or Standalone
  • Compatible family form factors
  • Generic GATT Client and Server
  • Low power modes
  • Terminal I/O for secure, fast and easy transparent serial data transfer
  • Bluetooth and Regulatory certifications for multiple regions
  • Free Android and iOS source codes

Model Technology Additional Features

BlueMod +Sx Family

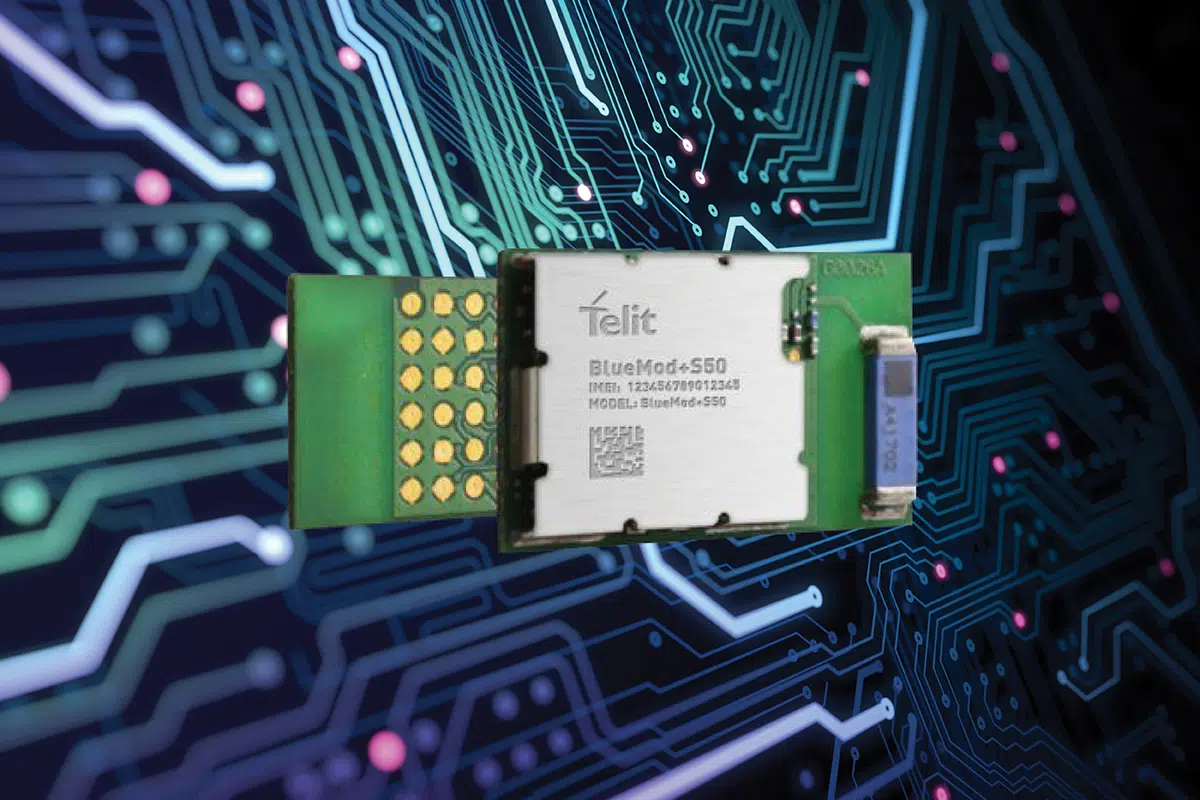

BlueMod+S50

Bluetooth 5.0 Low Energy Integrated or External Antenna
GATT Client & Server
Telit Terminal I/O (SPP-like)
850 m range, free line of sight
NFC Handover
Firmware update over the air
Ultra-low-power modes with proprietary low power UART (UICP)

BlueMod+S42

Bluetooth 4.2 Low Energy Several embedded firmware variants
GATT Client & Server
NFC Handover
900m range, free line of sight
Terminal I/O (SPP-like)
Firmware update over the air
Ultra-low-power modes with proprietary low power UART (UICP)

BlueMod+S42M

Bluetooth 4.2 Low Energy Embedded sensors for motion environment change detection
500m range, free line of sight
GATT Server
Configurable Device Information Service
Terminal I/O (SPP-like)
Ultra-low-power modes with proprietary low power UART (UICP)
