Sierra Wireless Antennas
Recommended Application | Supported Technologies |
Size L x W x H |
Recommended Products | |
---|---|---|---|---|
![]() Paddle Wi-Fi/Bluetooth AntennaSleek ruggedized profile; robust hinge; dual-band Wi-Fi 2.4/5GHz View Details |
Fixed | Wi-Fi 2.4/5GHz + Bluetooth | 41x7x163mm 1.6x0.3x6.4in | MP70 MG90 |
![]() |
Fixed | LTE 698-2700MHz | 41x7x163mm 1.6x0.3x6.4in | MG90 MP70 |
![]() 2-in-1 Panel AntennaBolt mount; LTE MIMO; available with a variety of brackets; ideal for enclosure/panel/wall/pole mount applications View Details |
Fixed | 2 x LTE 698-2700MHz (MiMo) | 150x45x49mm 5.9x1.8x1.9in | RV55 RX55 |
![]() 3-in-1 Panel Antenna WiFiBolt mount; fixed LTE MIMO antenna with GPS/GNSS for tracking location View Details |
Fixed | 2 x LTE 698-2700MHz (MiMo) + GNSS | 150x45x49mm 5.9x1.8x1.9in | MP70 MG90 |

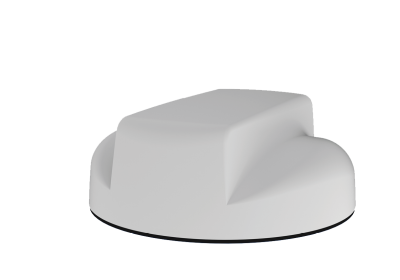

![]() 6-in-1 5G Dome AntennaLow profile form factor; omni-directional; recommended for transit or truck installations with MG90/MP70 View Details |
Mobile | 2 x LTE 698-2700MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz (MiMo) | 176øx62mm 6.9x2.4in |
MP70 MG90 XR80 XR90 |

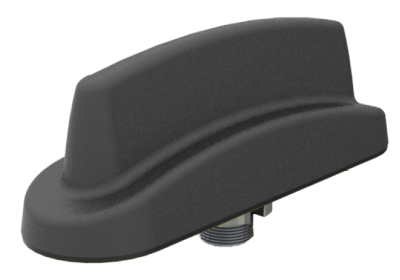

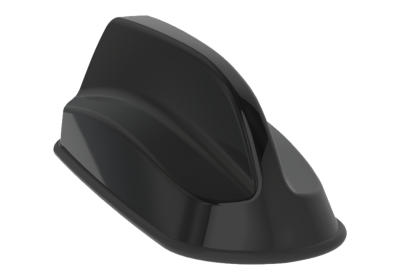

![]() 2-in-1 SharkFin Wi-Fi AntennaOEM robust design; omni directional; designed for MG90 second radio (LTE/B14) View Details |
Mobile | 2 x LTE 698-2700MHz (MiMo) | 172x61x50mm 6.7x2.4x2in | MG90 RV55 LX60 |
![]() 3-in-1 SharkFin Wi-Fi AntennaOEM robust design; omni directional; dual-band: 3×3 MIMO Wi-Fi antenna for MG90 second Wi-Fi Radio View Details |
Mobile | 3 x Wi-Fi 2.4/5GHz (MiMo) | 172x61x50mm 6.7x2.4x2in | MG90 MP70 |
![]() 3-in-1 SharkFin WiFi AntennaOEM robust design; omni directional; an ideal solution for basic router/gateway vehicle installation View Details |
Mobile | 2 x LTE 698-2700MHz (MiMo) + GNSS | 172x61x50mm 6.7x2.4x2in | MG90 MP70 |
![]() 6-in-1 SharkFin AntennaOEM robust design; omni-directional; recommended for vehicle installations View Details |
Mobile | 2 x LTE 698-2700MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz (MiMo) | 172x61x50mm 6.7x2.4x2in | MP70 MG90 |
